Chain Guides
Technical Specification
| Material | UHMWPE (ultra-high molecular weight polyethylene); other engineering plastics such as nylon or POM on request |
|---|---|
| Standard Colour | Green; natural white and black on request |

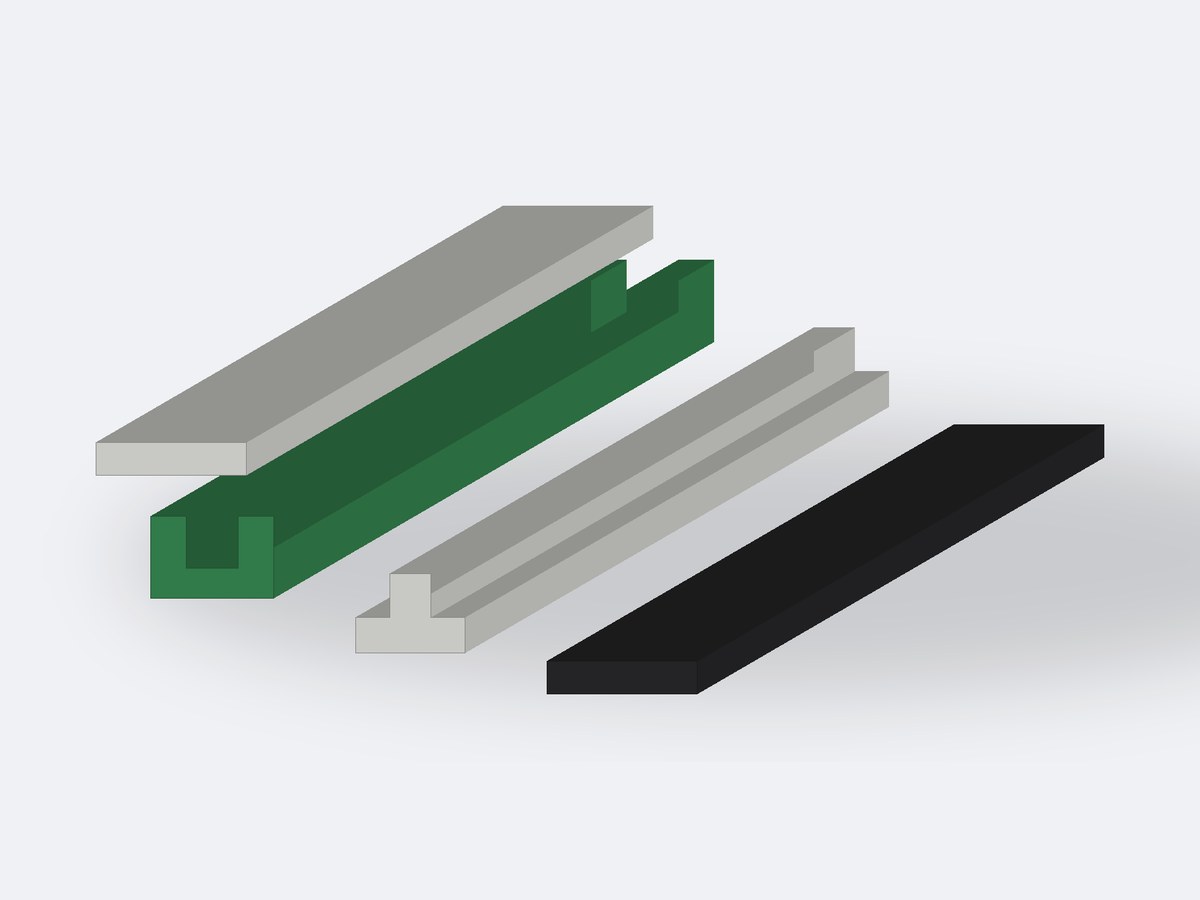

| Profile Types | Flat wear strips, U / channel guides, T-guides, C-profiles for mounting on steel channels, belt guides for flat, V and round belts |
| Typical Dimensions | Widths from about 10 mm to 70 mm and heights from about 5 mm to 80 mm, depending on profile |
| Chain Sizes | Profiles to suit common roller-chain sizes from small pitch (04) up to heavy-duty pitch (32), simplex to triplex |
| Lengths | Standard lengths of 2 m to 3 m, or cut to size |
| Key Properties | Very low friction, high wear and impact resistance, self-lubricating, no moisture absorption, corrosion-free, food-contact (FDA-compliant) grades available |
Key Benefits of UHMWPE Chain Guides
UHMWPE is the standard material for chain and conveyor guides because it combines very low friction with outstanding wear resistance. Key benefits include:
- Longer Chain and Sprocket Life: The low-friction surface reduces chain wear and stretch compared with running on steel.
- Quieter Running: UHMWPE absorbs vibration and noise, so lines run noticeably quieter.
- No Lubrication Needed: Self-lubricating material suits food and packaging lines where grease is unwanted.
- Corrosion-Free: Does not rust and absorbs no moisture, so it performs in wash-down areas.
- Easy to Fit: Light, easy to cut and drill, and clips or bolts onto existing steel frames.
For UHMWPE sheets, rods and other machined wear parts, see our UHMWPE Sheets & Rods page.
Chain Guide Material Comparison
| Material | Primary Properties | Typical Applications |
|---|---|---|
| UHMWPE | Very low friction, self-lubricating, good wear resistance | High-speed packaging and bottling lines, food-grade conveyors |
| Nylon (PA) | Higher rigidity and load capacity than UHMWPE | Heavier chain-drive systems, industrial conveyors |
Where UHMWPE Chain Guides Are Used
Chain guides are used anywhere a chain or belt needs support and guidance, including:
- Bottling and canning lines
- Packaging and palletising machines
- Food and beverage processing conveyors
- Roller-chain drives in industrial machinery
- Material-handling and warehouse conveyors
- Agricultural and bulk-handling equipment
Choosing a Chain Guide Profile
| Profile | Typical Use |
|---|---|
| Flat wear strip | Supports the chain or belt on a flat steel frame; cut to length |
| U / channel guide | Guides the chain from both sides as well as supporting it |
| T-guide | Fits into a slot to guide the chain rollers from the centre |
| C-profile (with steel channel) | Mounts on a steel carrier for long, rigid conveyor runs |
| Belt guides (flat, V, round) | Supports and tracks flat belts, V-belts and round belts |
What to Send for a Quotation
- Chain size (pitch) and type — simplex, duplex or triplex
- Profile type, or a sketch / drawing of the cross-section
- Total length required and preferred piece length
- Operating environment — dry, wet / wash-down, food contact
Values shown are typical industry figures for guidance. Exact dimensions, grades and tolerances are confirmed on your quotation.
Our Al Khobar team will confirm the matching profile, lead time and quotation for delivery anywhere in Saudi Arabia and the GCC.
Frequently Asked Questions
Q1. Why use UHMWPE for chain guides instead of steel?
A. UHMWPE has very low friction and is self-lubricating, so the chain wears less, runs quieter and does not need grease on the guide. It also does not rust.
Q2. Are your chain guides suitable for food lines?
A. Yes. Food-contact (FDA-compliant) grades of UHMWPE are available for bottling, food and beverage lines.
Q3. Which chain sizes do you have guides for?
A. Guide profiles are available for common roller-chain sizes from small pitch up to heavy-duty pitch, in simplex, duplex and triplex. Tell us your chain size and we will confirm the matching profile.
Q4. Can you make a custom chain guide profile?
A. Yes. We can machine UHMWPE guides to your drawing or sample, as well as supplying standard profiles and flat wear strips.
Q5. What lengths are chain guides supplied in?
A. Profiles are usually supplied in standard lengths of 2 m to 3 m, or cut to the lengths you need.
