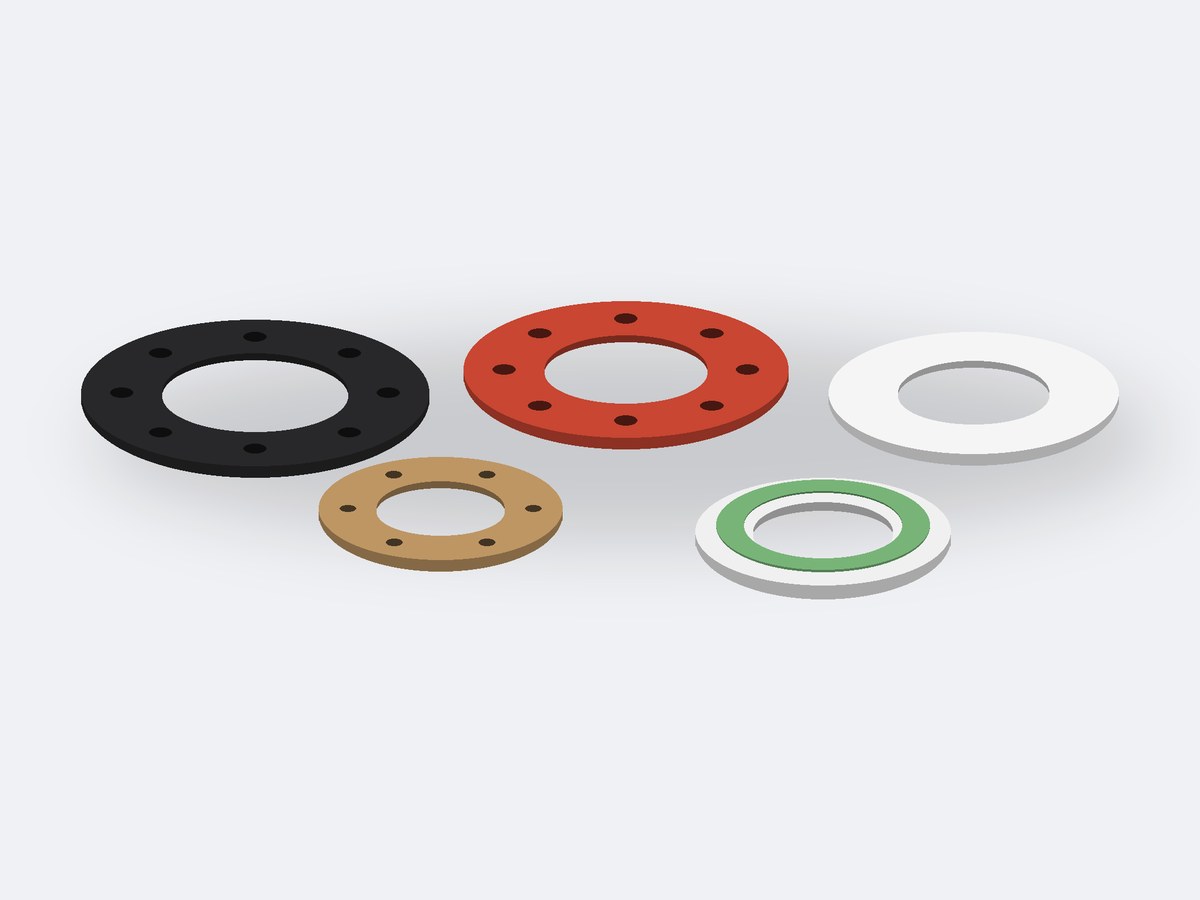

Ready-Cut Gaskets — Rubber, Non-Asbestos, PTFE & Cork
Technical Specification
| Materials | Rubber (EPDM, Neoprene, NBR and others), Non-asbestos compressed fibre, PTFE ring gaskets, PTFE envelope gaskets, Rubberised cork |
|---|---|
| Form | Full-face and ring (IBC) flange gaskets, custom-shaped gaskets as per drawing |
| Standards | Cut to common flange standards such as ASME/ANSI B16.5 and EN 1092-1, or to your own drawing |
| Typical Uses | Pipe flanges, pumps, valves, heat exchangers, transformer and gearbox covers, inspection hatches |
| Note | Asbestos gaskets are not supplied — non-asbestos materials are used instead |
Why Use Ready-Cut Gaskets
Ordering gaskets ready-cut saves site time and gives a cleaner, more consistent seal than cutting by hand. Key benefits include:
- Accurate Fit: Bolt holes and bores are cut to size, so the gasket seats correctly first time.
- Right Material for the Duty: Choose rubber, fibre, PTFE or cork to match the fluid, pressure and temperature.
- Faster Shutdowns: Gaskets arrive ready to install, cutting maintenance downtime.
- Repeatable Quality: Every gasket in a batch is cut to the same dimensions.
For gasket sheet materials and selection guidance, see our Gaskets & Seal Materials page.
Ready-Cut Gasket Types
We cut gaskets in the following materials:
- Rubber gaskets — EPDM for water and weather, Neoprene for general duty, NBR for oils and fuels
- Non-asbestos gaskets — compressed fibre for steam, water, oils and general process lines
- PTFE ring gaskets — for aggressive chemicals
- PTFE envelope gaskets — a PTFE jacket over a compressible insert, for chemical lines and glass-lined or fragile flanges
- Rubberised cork gaskets — for transformer, gearbox and oil-sump covers
Choosing the Right Gasket Material
- Water, air and weather exposure: EPDM rubber
- Oils, fuels and hydraulic fluids: NBR (nitrile) rubber or non-asbestos fibre
- Steam and hot process lines: non-asbestos compressed fibre
- Aggressive chemicals: PTFE ring or PTFE envelope gaskets
- Low-pressure covers on oil-filled equipment: rubberised cork
Not sure which to choose? Send us the fluid, temperature, pressure and flange size and we will recommend a material.
Send us your drawing, sizes and quantities and our Al Khobar team will confirm availability, lead time and a quotation for delivery anywhere in Saudi Arabia and the GCC.
Frequently Asked Questions
Q1. Can you cut gaskets to our drawing?
A. Yes. We cut full-face, ring and custom-shaped gaskets to your drawing, sample or flange standard.
Q2. Do you supply asbestos gaskets?
A. No. We supply non-asbestos compressed fibre gaskets, which replace asbestos in modern installations.
Q3. What is a PTFE envelope gasket?
A. It is a gasket with a thin PTFE jacket over a softer insert. The PTFE faces the process fluid for chemical resistance, while the insert provides compressibility for a good seal.
Q4. Where are cork gaskets used?
A. Rubberised cork gaskets are commonly used on transformer covers, gearboxes and oil sumps, where a compressible, oil-resistant seal is needed at low pressure.
