Read moreOutrigger Pads for Liebherr Cranes Sizing Guide for Saudi Arabia
06 September, 2026 | Admin
Outrigger pads for Liebherr cranes need careful sizing because these machines generate some of the largest ground-bearing loads seen on Saudi Arabia’s heavy-lift sites. Liebherr cranes tend to show up on Saudi Arabia’s more demanding lifts — large petrochemical turnarounds, wind turbine installation, and heavy modular lifts where higher-capacity, precision equipment is called for.
Where Liebherr cranes are commonly used in KSA
• Heavy lift petrochemical and refinery turnaround work
• Wind turbine installation on larger crawler models
• High-capacity all-terrain cranes on major infrastructure projects
Sizing outrigger pads for Liebherr equipment
Liebherr’s higher-capacity models are often exactly the machines generating the largest outrigger reaction forces on a site, Outrigger pads Jubail which is where correctly sized (and sometimes custom) pads matter most. Given the scale of typical Liebherr deployments in KSA, we’d recommend reviewing the specific load chart with us before the job starts rather than defaulting to standard stock sizes.

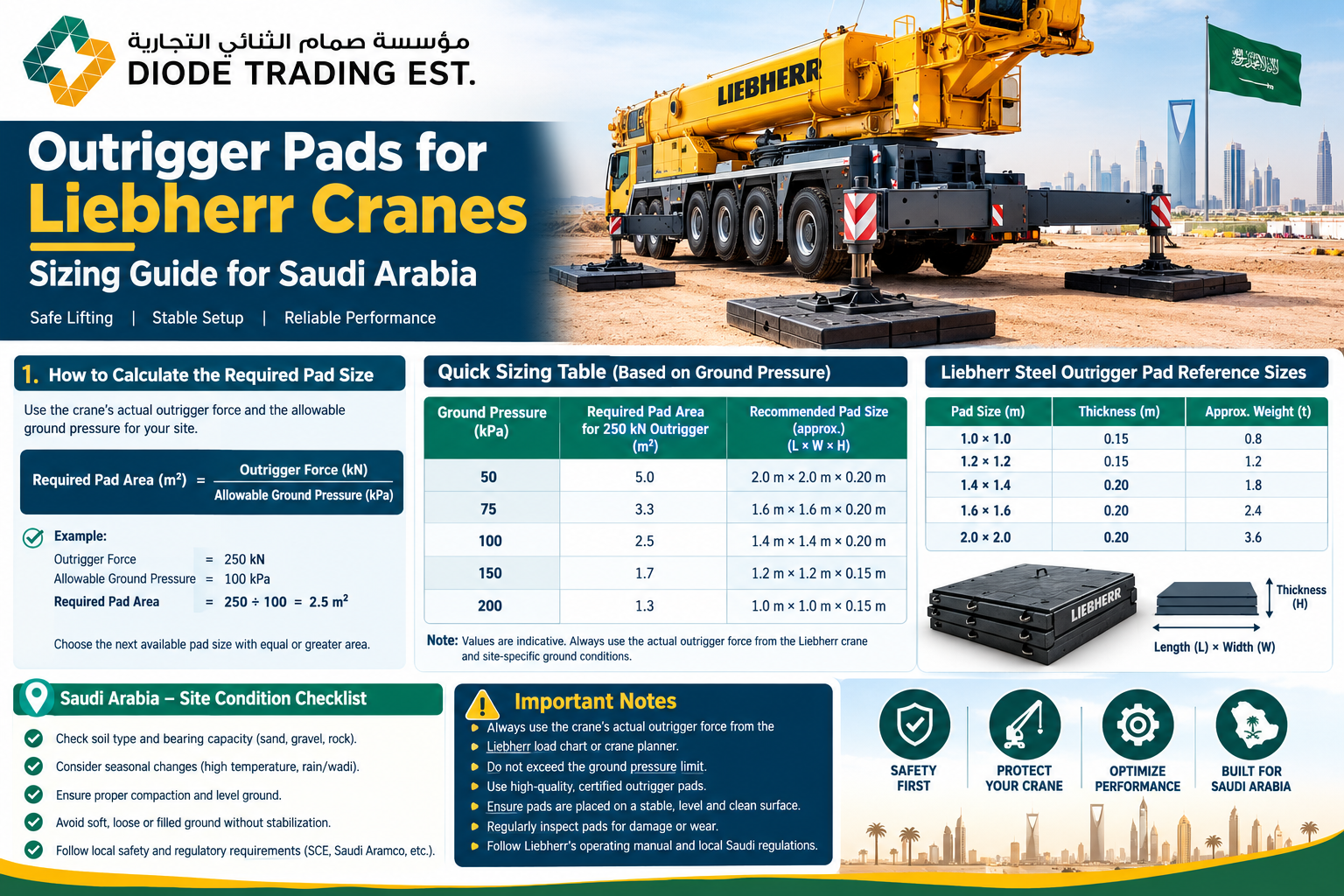

How outrigger pad size is calculated for Liebherr cranes
The starting point is always the crane’s own load chart: the maximum reaction force at each outrigger for the boom angle and radius you’re planning, divided by the safe bearing pressure of the ground you’re working on, gives you the minimum pad area. Liebherr’s crawler and all-terrain ranges can push reaction loads well beyond what a standard timber mat or a small stock pad can safely spread, so on larger LR and LTM models we typically size the pad to the outrigger float footprint first, then adjust upward for softer ground.
Typical Saferig pad sizes used with Liebherr cranes
Because outrigger float sizes vary across Liebherr’s crawler and mobile ranges, pad requirements are rarely one-size-fits-all. On the projects we support in Saudi Arabia, UHMWPE pads for these machines commonly range from around 1m x 1m up to 1.5m x 1.5m, in thicknesses between 25mm and 50mm depending on the reaction load and ground conditions. Diode Trading EST can also cut pads to a custom footprint when a Liebherr model’s float doesn’t match a standard size.
Ground conditions on Saudi project sites
Many of the sites where Liebherr cranes operate in the Kingdom sit on reclaimed coastal land, loose desert sand, or compacted fill rather than solid rock or finished concrete. UHMWPE outrigger pads spread the crane’s point load across a wider footprint than the bare outrigger float, reducing the risk of ground punch-through or uneven settling that can throw off a lift’s stability mid-operation.
Working with Diode Trading EST
We supply Saferig UHMWPE outrigger pads with documented load ratings and Material Test Certificates, sized to match your Liebherr model’s outrigger configuration, with fast delivery across Saudi Arabia’s major industrial hubs. Share your crane’s load chart and site ground conditions with our team, and we’ll confirm the right pad size before the lift is scheduled.
Handling outrigger pads for Liebherr cranes on site
UHMWPE pads are considerably lighter than steel plates of the same footprint, which matters when a rigging crew is repositioning outriggers between picks on a Liebherr crawler crane. Even so, the larger pad sizes used with bigger models are still a two-person lift, and we recommend keeping a dedicated set for each outrigger position rather than moving a single pad around the crane during a lift. Between jobs, pads should be stacked flat and kept out of direct, prolonged sun exposure to preserve their working life.
Get the right pad size before your next Liebherr lift
If you’re planning a lift with a Liebherr crawler or all-terrain crane anywhere in Saudi Arabia, send us the model, configuration, and ground type, and our team will confirm outrigger pad sizing and delivery timelines before you mobilize. This avoids the common last-minute scramble for oversized timber mats when a bigger Liebherr unit turns up on site than the original plan allowed for.
