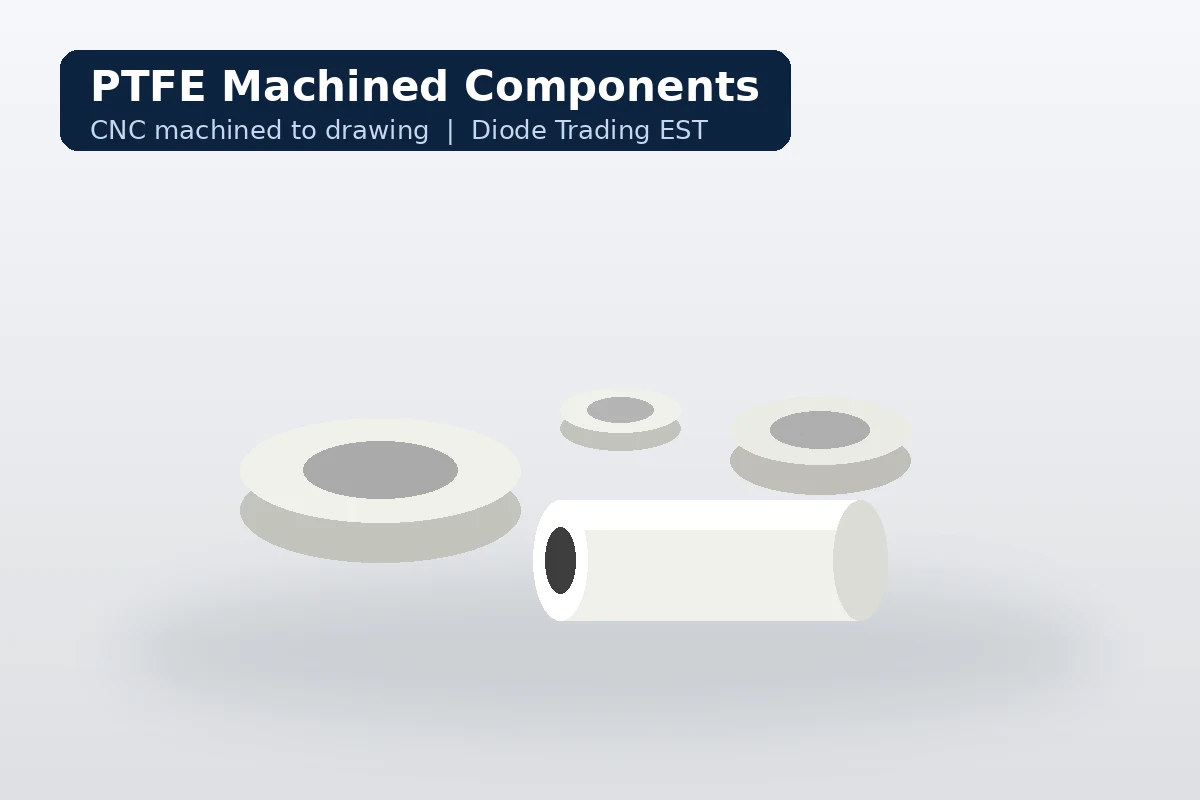

PTFE Machined Components — CNC Machined Teflon Parts
Technical Specification
| Materials: | Virgin PTFE; glass, carbon, graphite, bronze and MoS2 filled PTFE; PEEK on request |
|---|---|
| Processes: | CNC turning, milling, drilling and cutting from rod, tube, sheet and moulded blanks |
| Parts: | Seals, seats, bushes, washers, spacers, insulators, rings, manifolds and custom shapes |
| Tolerances: | To drawing; PTFE’s thermal expansion must be considered for tight tolerances |
| Quantities: | Prototypes, replacement parts and production runs |
| Note: | Figures are typical; confirm exact grade, size and rating with our team |
Why Machined PTFE Parts?
- Chemical resistance: parts survive acids, solvents and process chemicals
- Low friction: bushes and seals run without lubrication
- Insulation: excellent electrical insulator
- Replacement parts: we can copy worn parts from a sample when no drawing exists
Typical Machined PTFE Components
- Valve seats, stem seals and body seals
- Pump bushes, wear rings and impeller parts
- Piston, guide and back-up rings
- Electrical insulators and spacers
- Laboratory and semiconductor fittings
- Manifolds, nozzles and custom fittings
Choosing a Grade
Virgin PTFE gives the best chemical resistance and insulation. Glass-filled PTFE improves creep and wear resistance, carbon- and graphite-filled grades suit dynamic seals, and bronze-filled PTFE suits high-load bushes and guide parts. See the PTFE Grades Guide and our PTFE & Filled PTFE Technical Data Sheet (PDF).
Information to Send
- Drawing (PDF, DXF or STEP) or a sample part
- Grade and quantity
- Operating temperature, chemicals and load
See also: PTFE (Teflon) Rods, PTFE (Teflon) Tube and PTFE (Teflon) Products.
Send us your drawing or sizes, the grade, quantity and service conditions, and our Al Khobar team will confirm availability, lead time and a quotation for delivery anywhere in Saudi Arabia and the GCC. Every order is supplied with a Material Test Certificate.
Frequently Asked Questions
Q1. Can you machine PTFE parts from a sample?
A. Yes. Send the old part and we can measure it and machine a replacement.
Q2. What tolerances can be held on PTFE parts?
A. Tight tolerances are possible, but PTFE expands with temperature, so tolerances should be specified at a stated temperature.
Q3. Do you machine filled PTFE grades?
A. Yes, including glass, carbon, graphite and bronze-filled PTFE.
Q4. What file formats do you accept?
A. PDF drawings, DXF and STEP files, or a dimensioned sketch.
