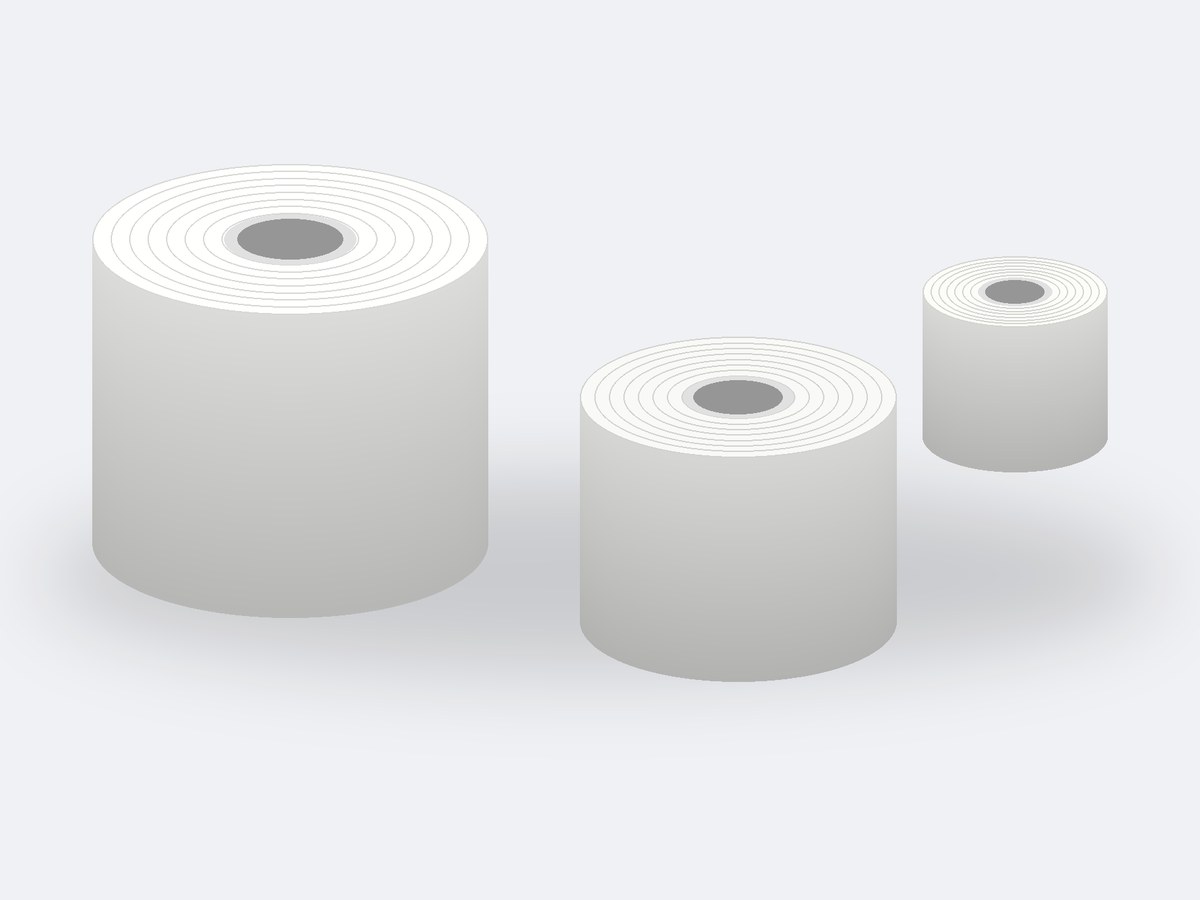

PTFE Film Rolls — Skived Teflon Film & Tape
Technical Specification
| Material: | Virgin PTFE skived film |
|---|---|
| Typical Thickness: | Approx. 0.05 mm to 0.5 mm |
| Form: | Rolls and cut lengths; slit widths on request |
| Versions: | Plain, one-side etched (bondable), adhesive-backed |
| Service Temperature: | Approx. -200°C to +260°C |
| Electrical: | High dielectric strength; low dielectric loss |
| Note: | Figures are typical; confirm exact sizes and grades with our team. |
Key Benefits of PTFE Film
- Non-Stick Surface: excellent release for heat sealing, moulding and packaging
- Electrical Insulation: used as slot liners, wraps and layer insulation
- Low Friction: creates slide surfaces on chutes and guides
- Chemical Resistance: protects surfaces from aggressive chemicals
- Heat Resistance: stable up to around 260°C
Applications
- Heat-sealing machine jaws and bars
- Release liners for composite moulding and bonding
- Electrical insulation for motors, transformers and cables
- Low-friction liners on chutes, hoppers and slides
- Gasket and seal facings
- Etched film for bonding to metal or rubber
Plain, Etched or Adhesive-Backed?
- Plain film is used where the film is clamped, wrapped or laid loose.
- Etched film has one side chemically treated so it can be bonded with standard adhesives.
- Adhesive-backed film applies directly as a non-stick or low-friction surface.
Read our skived vs molded vs expanded PTFE guide. See also: PTFE Products and PTFE Tapes & Seals.
Send us your drawing, sizes and quantities and our Al Khobar team will confirm availability, lead time and a quotation for delivery anywhere in Saudi Arabia and the GCC. Every order is supplied with a Material Test Certificate.
PTFE Film
For PTFE Film enquiries, contact Diode Trading EST in Dammam for stock availability, cut-to-size options and fast delivery across Saudi Arabia.
For general product standards in the Kingdom, see the Saudi Standards, Metrology and Quality Organization (SASO).
Frequently Asked Questions
Q1. What thickness of PTFE film is available?
A. PTFE film is typically available from about 0.05 mm to 0.5 mm. Contact us to confirm the thickness and width you need.
Q2. Can PTFE film be glued?
A. Plain PTFE does not bond easily. Use etched PTFE film, which is treated on one side for bonding, or adhesive-backed film.
Q3. What is PTFE film used for in heat sealing?
A. It covers sealing jaws and bars so plastic film does not stick to the hot surface.
Q4. Is PTFE film a good electrical insulator?
A. Yes. It has high dielectric strength and is used for slot liners, wraps and layer insulation.
