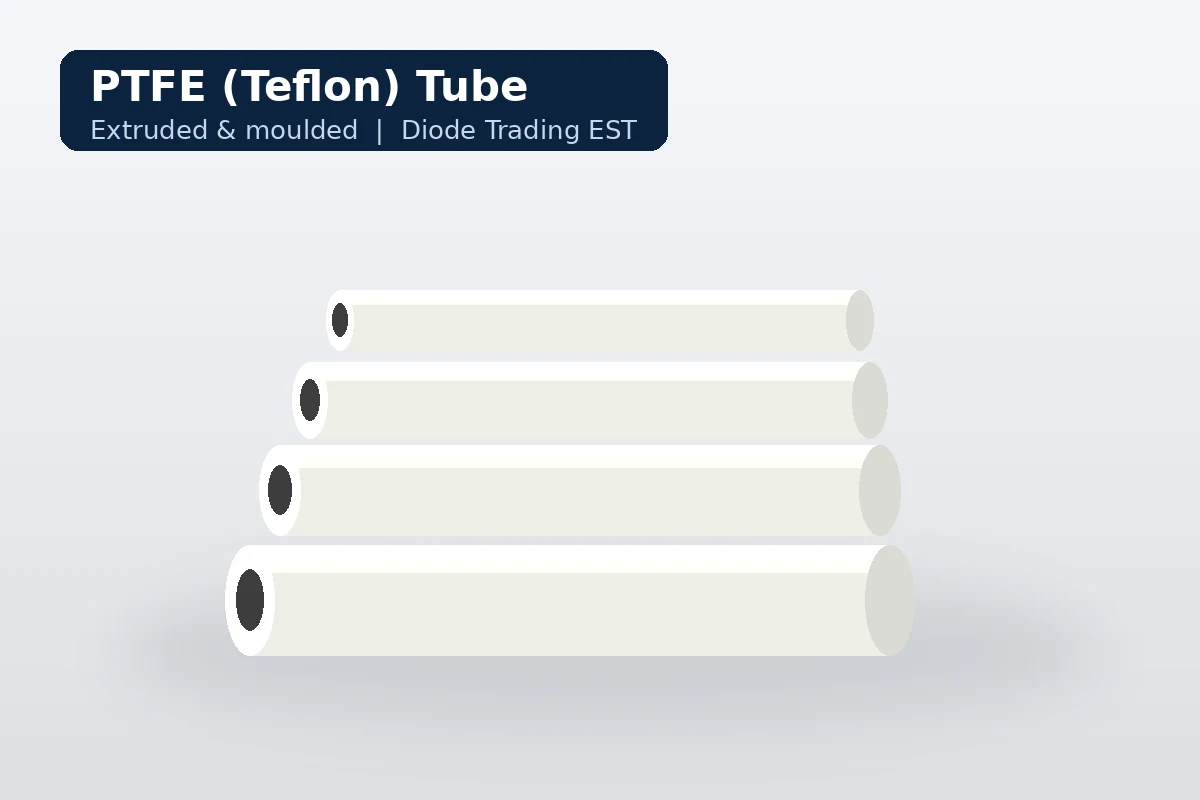

    PTFE (Teflon) Tube — Extruded & Moulded

    Technical Specification​

    Material: Virgin PTFE; glass, carbon and bronze-filled grades on request
    Types: Extruded tube (thin wall, long lengths) and moulded tube (thick wall, larger diameters)
    Sizes: Range of inner and outer diameters; contact us for stock sizes
    Service Temperature: Approx. -200°C to +260°C (virgin PTFE)
    Supply: Full lengths, cut lengths and machined parts
    Note: Figures are typical; confirm exact grade, size and rating with our team
    Get a Quote Call for Assistance

    Why PTFE (Teflon) Tube?

    • Chemical inertness: carries aggressive chemicals without attack or contamination
    • Non-stick bore: media flows cleanly and residues do not build up
    • Temperature range: from cryogenic to around 260°C
    • Electrical insulation: used as insulating sleeves
    • Machinable: moulded tube is used as blanks for bushes, seals and rings
    PTFE Teflon tube Saudi Arabia

    Applications

    • Chemical transfer and sampling lines
    • Liners and sleeves for pipes and equipment
    • Blanks for machined bushes, piston rings and seals
    • Electrical insulation sleeves
    • Laboratory and instrument tubing
    PTFE Teflon tube Saudi Arabia
    PTFE Teflon tube Saudi Arabia

    Extruded or Moulded Tube?

    Extruded PTFE tube is made continuously, so it suits thin walls and long lengths for tubing and sleeves. Moulded PTFE tube is pressed and sintered in larger, thick-wall sizes and is the usual blank for machined rings and bushes. Tell us the inner and outer diameter, length and grade.

    See also: PTFE (Teflon) Rods, PTFE (Teflon) Sheet and PTFE (Teflon) Products.

    Send us your sizes, quantities and service conditions (fluid, temperature, pressure) and our Al Khobar team will confirm availability, lead time and a quotation for delivery anywhere in Saudi Arabia and the GCC. Every order is supplied with a Material Test Certificate.

    Typical properties and uses

    Virgin PTFE is suitable for continuous service from about -200 °C to +260 °C and resists almost all industrial chemicals, which is why it is used for chemical transfer lines, instrument and sampling lines, and protective sleeves over wires. Its very low friction and non-stick surface also make it useful for guide sleeves and liners where material must slide freely. Filled grades, such as glass or carbon filled, are chosen when a machined ring or bush needs better wear resistance and less creep under load. When you order, state the inside diameter, outside diameter, length and grade, together with the fluid, temperature and pressure, so our team can confirm the right material and a realistic delivery date.

    PTFE Tube: Why Buy from Diode Trading EST

    • Stock in Dammam: short lead times in the Eastern Province and fast dispatch to Riyadh, Jeddah and project sites across the region.
    • Documentation: datasheets and a Material Test Certificate with every order for your submittal. Quality, environmental and safety management: ISO 9001, ISO 14001, ISO 45001.
    • Trusted by major clients: Saudi Aramco, SABIC, NEOM, Red Sea Global, Zahid Group and Qiddiya.
    • Local support: a Dammam-based team you can call, not a distant trading desk.

    How to Order

    1. Send your size, grade and quantity to sales@diode.sa or use the quote form.
    2. We confirm availability and send a quotation with the datasheet.
    3. On approval we dispatch with the Material Test Certificate.

    For PTFE tube enquiries, contact our team at sales@diode.sa.

    Frequently Asked Questions

    Q1. Is Teflon tube the same as PTFE tube?

    A. Yes. Teflon is a brand name for PTFE, so Teflon tube and PTFE tube are the same product.

    Q2. What is the difference between extruded and moulded PTFE tube?

    A. Extruded tube is thin-wall and long; moulded tube is thick-wall and used as blanks for machined parts.

    Q3. Can you supply filled PTFE tube?

    A. Yes, glass, carbon and bronze-filled grades can be supplied on request.

    Q4. Do you cut PTFE tube to length?

    A. Yes. We supply full or cut lengths and machined parts.
