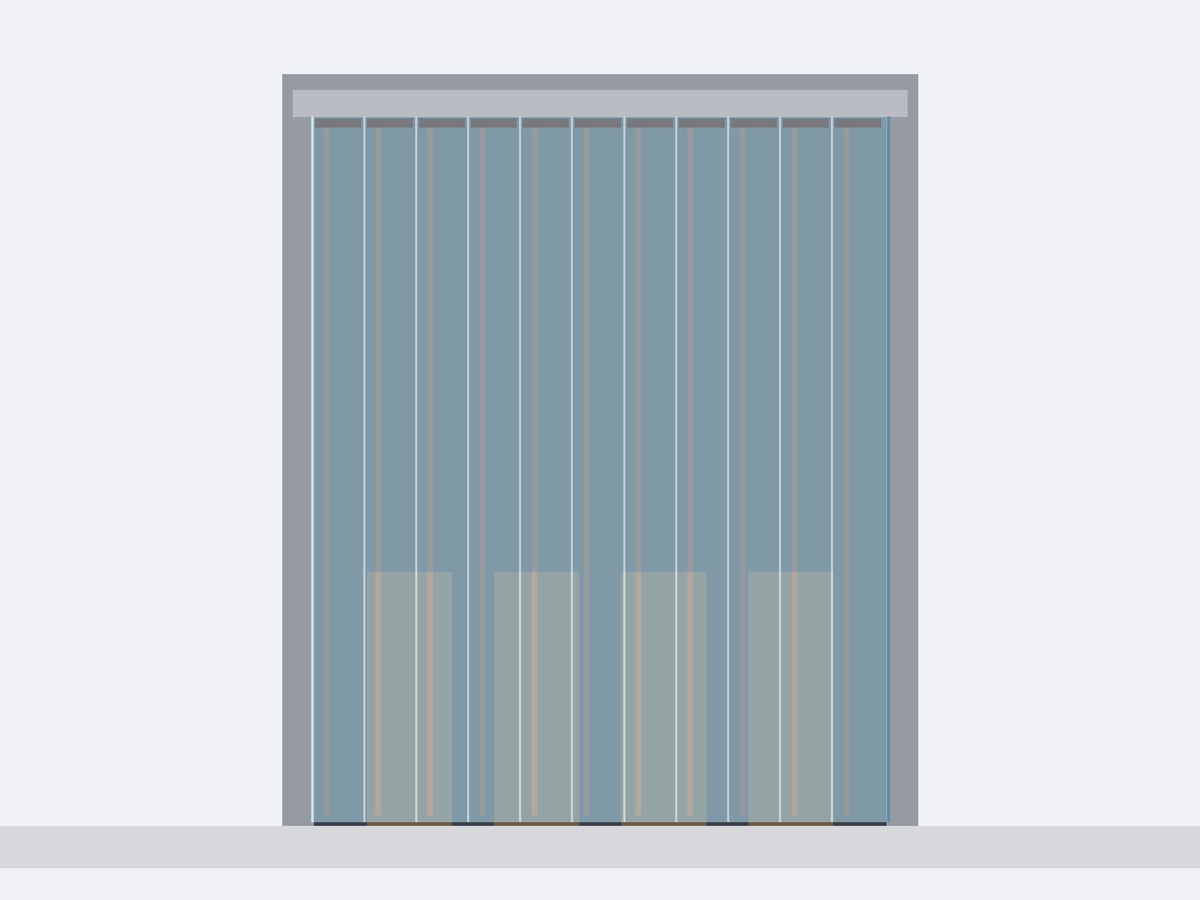

PVC strip curtain in a warehouse doorway

PVC Curtains

Technical Specification​

Material Flexible, plasticised PVC (clear with a light blue tint, plus coloured and opaque options)
Strip Types Standard (plain) clear, double-ribbed, polar / low-temperature, anti-insect yellow, welding-screen (red / green)
Typical Strip Sizes 200 × 2 mm, 300 × 3 mm, 400 × 4 mm (width × thickness)
Roll Length Typically 50 m rolls, or strips cut to door height
Working Temperature Standard grade about -15°C to +50°C; polar grade down to about -25°C (typical)
Hardware Galvanised or stainless steel hanging rail with hook-on or bolt-on strip clamps
Typical Uses Cold rooms, chillers and freezers, loading docks, warehouse doorways, factory partitions, car washes

Key Benefits of PVC Strip Curtains

A strip curtain closes a doorway without stopping traffic — people, trolleys and forklifts pass straight through, and the strips fall back into place behind them. Key benefits include:

  • Energy Savings: Holds cold air in chillers and cold rooms and keeps hot outside air and dust out of air-conditioned areas.
  • Free Traffic Flow: No door to open or close, so forklifts and trolleys move through without stopping.
  • Visibility and Safety: Clear strips let drivers and staff see what is on the other side of the doorway.
  • Dust, Insect and Noise Control: Reduces dust, flying insects, draughts and noise passing between areas.
  • Low Maintenance: Individual strips unhook and replace in minutes if one is damaged.

For cold-chain sites, polar-grade strips stay flexible at low temperature instead of stiffening and cracking.

PVC Curtain Strip Comparison

Type Key Property Typical Use
Standard Clear General purpose, good visibility Warehouse and workshop doorways
Low-Temperature Stays flexible in cold, resists cracking Cold storage, freezer rooms
Welding-Safe (Tinted) Blocks UV flash Welding bay partitions
Anti-Static Dissipates static charge Static-sensitive or dusty environments
PVC strip curtain in a warehouse doorway

Where PVC Strip Curtains Are Used

PVC strip curtains are used wherever a doorway needs to stay open for traffic but closed to air, dust or insects, including:

  • Cold rooms, blast freezers and dairy chillers
  • Refrigerated trucks and reefer containers
  • Loading docks and warehouse entrances
  • Supermarket back-of-house and food-processing areas
  • Factory partitions between clean and dusty zones
  • Car washes and vehicle workshops
  • Welding bays (coloured welding-screen strips)
PVC strip curtain in a warehouse doorway
PVC strip curtain in a warehouse doorway

Choosing the Right Strip Type

Strip Type Best For Notes
Standard clear (plain) General doorways, warehouses, factory partitions Most economical option for ambient temperatures
Double-ribbed High-traffic forklift doorways Raised ribs take the scuffing from vehicles, so the strip stays clearer for longer
Polar / low-temperature Cold rooms, freezers, refrigerated trucks Formulated to stay flexible in sub-zero conditions
Anti-insect (yellow) Food areas, kitchens, warehouses near open ground Yellow tint is less attractive to many flying insects
Welding screen (red / green) Welding bays and workshops Filters welding glare for people working nearby

Choosing Strip Width and Overlap

  • 200 mm × 2 mm strips: pedestrian and small doorways up to about 2.5 m high
  • 300 mm × 3 mm strips: standard warehouse and cold-room doors, trolley and pallet-truck traffic
  • 400 mm × 4 mm strips: large dock and forklift doors, higher wind or pressure differences
  • Overlap: about 50% overlap for cold stores and freezers; less overlap is acceptable for dust and insect control

Values shown are typical industry figures for guidance. Exact dimensions, grades and tolerances are confirmed on your quotation.

Send us the door size (width × height), the environment (chilled, frozen, dusty, outdoor) and the traffic type (people, trolleys or forklifts), and our Al Khobar team will recommend the strip type and overlap and quote supply or supply-and-install anywhere in Saudi Arabia and the GCC.

Background reading: strip curtains on Wikipedia.

PVC Strip Curtains

PVC Strip Curtains: Why Buy from Diode Trading EST

  • Stock in Dammam: short lead times in the Eastern Province and fast dispatch to Riyadh, Jeddah and project sites across KSA.
  • Documentation: datasheets and a Material Test Certificate with every order for your submittal. Quality, environmental and safety management: ISO 9001, ISO 14001, ISO 45001.
  • Trusted by major Saudi clients: Saudi Aramco, SABIC, NEOM, Red Sea Global, Zahid Group and Qiddiya.
  • Local support: a Dammam-based team you can call, not a distant trading desk.

All Types of PVC Strip Curtains We Supply

Diode Trading EST supplies every common type of PVC strip curtain from our Dammam warehouse. Match the type to the job, then confirm size and overlap on your quotation.

standard clear PVC strip curtain rolls

Standard clear strips

The general-purpose choice for warehouses, factories and docks, with clear visibility through the door. See the size chart.

ribbed PVC strip curtain edge detail in stock at Diode Trading, Dammam

Ribbed strips

Raised ribs take scuffs from pallets and forks at busy doors. Ribbed vs smooth.

polar PVC strip curtain for a cold room

Polar (freezer) strips

Low-temperature PVC that stays flexible in chillers and freezers, typically down to about -25 °C. Cold room curtains.

orange welding screen curtain

Welding screens

Red or green tinted strips that cut glare around a welding bay. Not a fire-rated barrier. Welding curtains.

yellow insect control strip curtain

Insect-control strips

Yellow or orange tint to help keep flying insects out of food areas. Insect control.

anti-static PVC strip curtain

Anti-static strips

Reduce static build-up and dust attraction in electronics and clean areas. Anti-static curtains.

coloured PVC strip curtain

Coloured and frosted strips

Tinted or frosted strips for zoning, privacy and glare control. Colour options.

PVC folding door system

Folding, sliding and magnetic systems

Door systems for wide openings, vehicle bays and self-closing shop doors. Door systems.

Where PVC Strip Curtains Are Used

Typical applications are cold rooms and freezers, loading docks, warehouses, food factories and kitchens, welding bays, electronics areas and vehicle doors. See our guides on loading dock curtains, food factory curtains and strip curtain energy saving.

Related Guides and Resources

Download: PVC Strip Curtains Catalogue 2026 (PDF) with all types, sizes and applications.

How to Order PVC Strip Curtains

  1. Send your size, grade and quantity to sales@diode.sa or use the quote form.
  2. We confirm availability from stock and send a quotation with the datasheet.
  3. On approval we dispatch from Dammam with the Material Test Certificate.

For pvc strip curtains enquiries, contact our team at sales@diode.sa.

PVC Strip Curtains in Stock and Installed in Saudi Arabia

These are real photos from our Dammam warehouse and from installations in Saudi Arabia. We stock clear and polar PVC strip rolls (for example 2 mm x 200 mm x 50 m polar and 3 mm x 200 mm x 50 m clear rolls) and supply them cut to size, with rails and hardware.

Installed PVC strip curtain at a warehouse loading door, Saudi Arabia
PVC strip curtain installed at a warehouse loading door
PVC strip curtain installation at a warehouse door in Dammam
Strip curtain installation in Dammam
Clear PVC strip curtain installed on an industrial building in Saudi Arabia
Clear strips fitted on an industrial building
Clear PVC strip curtain rolls in the Diode warehouse, Dammam
Clear PVC strip rolls in our warehouse
Polar PVC strip curtain roll 2mm x 200mm x 50m, smooth surface
Polar PVC strip curtain roll, smooth surface
Stacked PVC strip curtain rolls in stock, Dammam
PVC strip curtain rolls in stock

Frequently Asked Questions

Q1. What thickness of PVC strip do I need?

A. Small pedestrian doors usually use 200 × 2 mm strips, standard warehouse and cold-room doors use 300 × 3 mm, and large forklift doors use 400 × 4 mm. Send us the door size and traffic type and we will recommend a size.

Q2. Do PVC strips work in freezers?

A. Yes, if you use a polar (low-temperature) grade. Standard PVC can stiffen and crack in sub-zero rooms, while polar strips are formulated to stay flexible.

Q3. What is a double-ribbed PVC strip?

A. It is a strip with raised ribs along its length. The ribs take most of the scuffing from forklifts and trolleys, so the flat area of the strip stays clearer for longer.

Q4. Can you supply the hanging rail and install the curtain?

A. Yes. We supply strips, rolls and the galvanised or stainless steel mounting rail with clamps, and can arrange supply-and-install for complete doorways.

Q5. How do I replace a damaged strip?

A. With hook-on hardware, a single strip unhooks from the rail and a new one clips in place, with no need to remove the whole curtain.
