Technical Specification
Diode Trading Establishment offers expert rubber,polyurethane (PU),FRP, polyurea, and epoxy lining services across Saudi Arabia and the GCC for corrosion, abrasion,and chemical protection.
Industrial Rubber Lining Solutions: Product Summary
Diode Trading Establishment is a leading provider of complete industrial lining and coating systems in Saudi Arabia and the GCC. Our expertise spans rubber, polyurethane (PU), FRP,polyurea, and epoxy linings, delivering long-term protection for process equipment, storage tanks, pipelines, and critical industrial assets operating in aggressive environments.Based in Dammam, we serve oil & gas, petrochemical, desalination, mining, water treatment,and power generation sectors. Our in-house and on-site teams ensure reliable corrosion and abrasion resistance, significantly extending equipment life and reducing maintenance downtime.
- Decades of expertise in industrial linings and coatings across the GCC
- Modern Dammam facility with autoclave, curing chambers, and spark testing
- Experienced technicians with 15–20 years in field applications
- Full QA/QC and material traceability with ISO compliance
- Approved vendor experience with major EPC and industrial clients
Our Lining Systems
- Rubber Lining:For acid, alkali, and slurry resistance. Ideal for storage tanks, pipes, pumps,and chemical vessels.
- Polyurethane (PU) Lining:Provides outstanding abrasion and impact resistance in
material handling and slurry applications. - FRP Lining:Lightweight and corrosion-resistant; used in seawater, chemical, and
wastewater containment systems. - Polyurea Lining:Fast-curing, seamless coating with exceptional waterproofing and chemical durability.
- Epoxy Coating:Provides high chemical and solvent resistance for tanks, pipelines, and flooring systems.
Industries We Serve
- Oil & Gas (refineries, terminals, chemical plants)
- Petrochemicals & Fertilizers
- Water & Desalination Plants
- Mining, Quarrying & Cement
- Power & Energy
- Marine & Offshore
- Food & Beverage
- Municipal & Industrial Wastewater Treatment
Applications
- Storage Tanks (acid, chemical, and water)
- Pipes & Spools (desalination, seawater, ballast systems)
- Scrubbers, Stacks & Ducts
- Agitators, Mixers, Filters & Condensers
- Valves, Pumps & Fittings
- Hoppers, Chutes & Launders
- Flow Meters & Surge Vessels
- Slurry & Dredging Systems
- Clarifiers, Reactors & Pressure Vessels
Lining Material Selection
| Lining Type | Temperature (°C) | Properties | Applications |
|---|---|---|---|
| Rubber (Natural /Butyl / Neoprene) | 80–130 | High chemical resistance, abrasion protection | Tanks, pipes, vessels |
| Polyurethane (PU) | 100–120 | Impact & wear resistance | Hoppers, slurry systems |
| FRP | 100–150 | Lightweight, non-corrosive | Tanks, ducts,scrubbers |
| Polyurea | –30 to 150 | Seamless,waterproof, flexible | Concrete protection,water tanks |
| Epoxy | –10 to 120 | High adhesion,chemical resistant | Pipelines, coatings,tanks |
Key Industries Served
| Industry | Applications | Recommended Materials |
|---|---|---|
| Mining, Quarrying &Aggregates | Hoppers, chutes, slurry pipes, separators, sand plants, conveyor rollers |
Soft natural rubber (40–70IRHD) |
| Chemicals & Pharmaceuticals | Storage tanks, vessels, valves, pumps,filters, agitators | Hard ebonite, neoprene,butyl, hypalon |
| Electroplating & Metal Finishing |
Electroplating tanks, filters, shot-blast machines |
Ebonite rubber, PVC, soft rubber |
| Food & Brewing | Mixers, coating pans, process vessels | Food-grade white rubber |
| Marine Industry | Fume scrubbers, dredging pipelines,cooling pipework | Ebonite (corrosion), soft rubber (wear) |
| Materials Handling | Chutes, hoppers, bins, conveyor rollers | Soft natural rubber |
| Power Generation | Cooling systems, coal handling plant | Natural rubber, EPDM |
| Water & Effluent Treatment | Vessels, agitators, dosing tanks, filters | Butyl, EPDM, neoprene,hypalon |
| Civil Engineering | Rollers, compactors, cement mixers | Soft natural rubber |
Rubber Lining Materials & Technical Data
Neoprene80–85120Chemical, oil, water resistance
| Type | Hardness (Shore A) | Max. Temperature(°C) | Typical Applications |
|---|---|---|---|
| Natural Soft | 70–75 | 90 | General abrasion resistance |
| Natural Hard | 85–95 | 90 | Acid and alkali tanks |
| Ebonite | 100 | 80 | Electroplating, chemical vessels |
| Open Ebonite | 95–98 | 80 | Chemical tanks |
| Nitrile | 40–95 | 120 | Hydrocarbon environments |
| Butyl | 80 | 130-140 | Strong acid resistance |
| EPDM | 75 | 160–170 | Steam and chemical resistance |
| Hypalon | 80 | 140 | UV and ozone resistance |
| Silicone | 40-80 | 175 | High temperature applications |
| Viton | 90 | 300 | Extreme chemical and thermal resistance |
Quality Assurance & Testing
Every lining and coating job is executed under strict QA/QC protocols. We maintain detailed inspection and test plans (ITPs) including spark testing, adhesion testing, hardness verification,and dimensional checks. Our lab is equipped with Rheometers, Tensile Testers, Ageing Ovens,Abrasion Testers, and precision gauges to ensure material and process conformity.

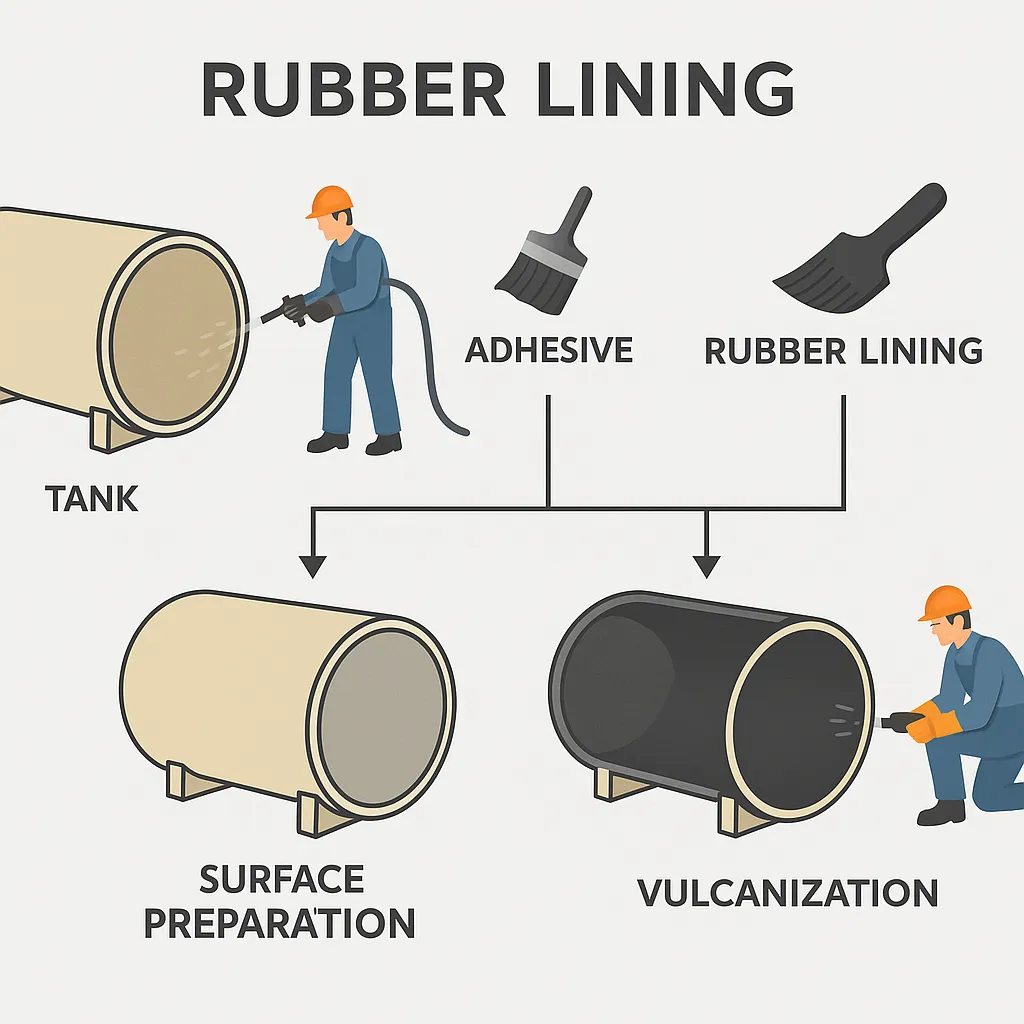

Our Process
- Surface Preparation – abrasive blasting and inspection
- Primer & Adhesive Application – multi-coat bonding system
- Lining Application – sheet or spray applied lining with skilled workmanship
- Vulcanization / Curing – autoclave or field curing for strong adhesion
- QA/QC Inspection – spark test, DFT measurement, visual and adhesion verification
Advantages of Industrial Linings
- Protects against corrosion, erosion, and abrasion
- Extends equipment life by up to 5–10 years
- Reduces maintenance and unplanned shutdowns
- Prevents contamination and product loss
- Improves process safety and reliability.
Why Rubber Lining?
Rubber lining is a protective barrier applied to internal surfaces of steel equipment to resist:
- Corrosion caused by acids, alkalis, and salts
- Erosion due to slurry and particulate flow
- Abrasion in mining and material handling systems
- Chemical attack in process industries
Using advanced vulcanized rubber technology, Diode Trading ensures maximum adhesion,uniform lining thickness, and leak-proof sealing for extended service life.
Our Expertise
Our team includes certified technicians with 15–20 years of hands-on experience in rubber lining, supported by an in-house QA/QC laboratory for complete quality assurance.
We provide solutions for:
- Acid & chemical storage tanks
- Water treatment vessels
- Condensers and filters
- Agitators and process equipment
- Valves, pumps, and fittings
- Ducts, stacks, and scrubbers
- Seawater and desalination pipelines
Types of Rubber Linings
-
- Pre-vulcanized & Self-vulcanizing Cold Bonded Linings
Ideal for on-site applications and quick repairs.
-
- Hard Rubber (Ebonite) & Graphite Grade Linings
Autoclave-cured for maximum corrosion resistance.
-
- Soft Rubber Steam-cured Linings
Designed for abrasion and impact resistance in slurry systems.
-
- On-site Cold Bonding & Steam-assisted Vulcanizing
For large structures and tanks that cannot be transported.

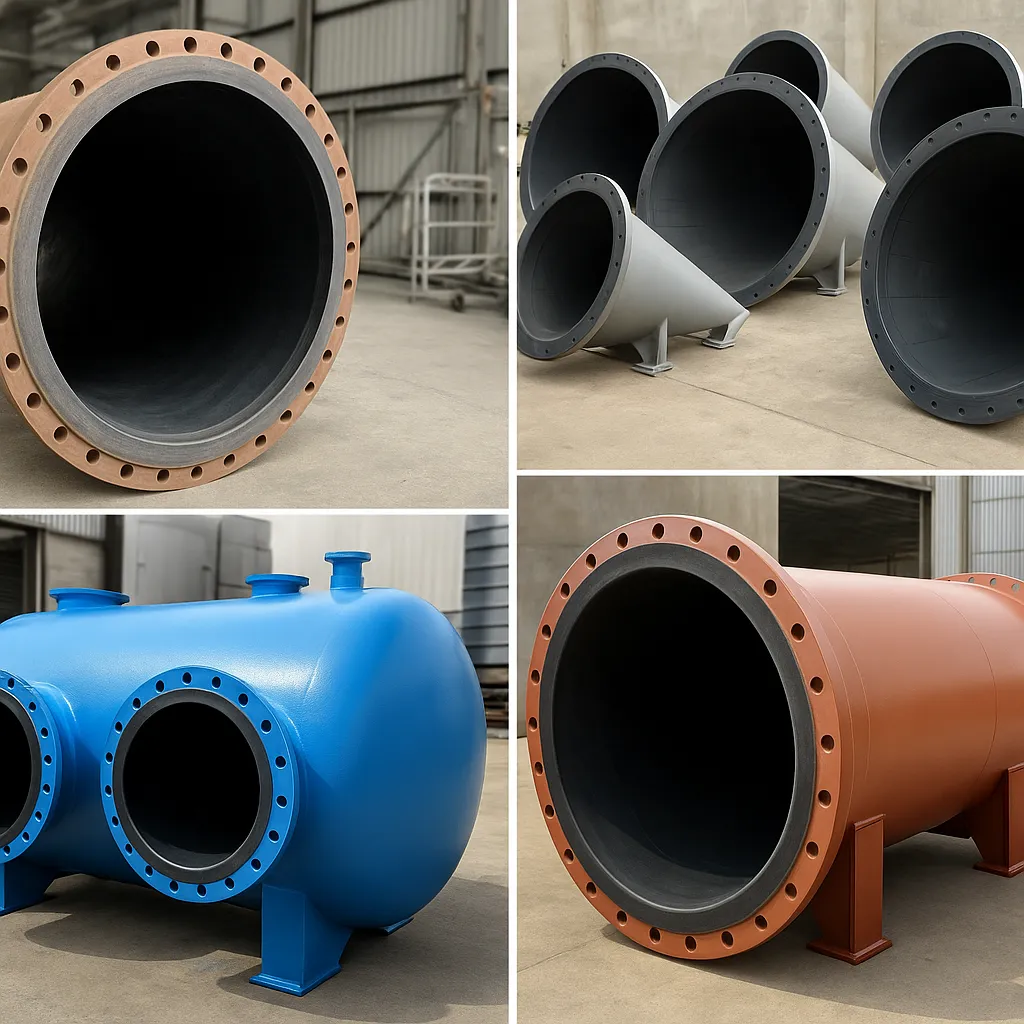

Rubber Lined Products

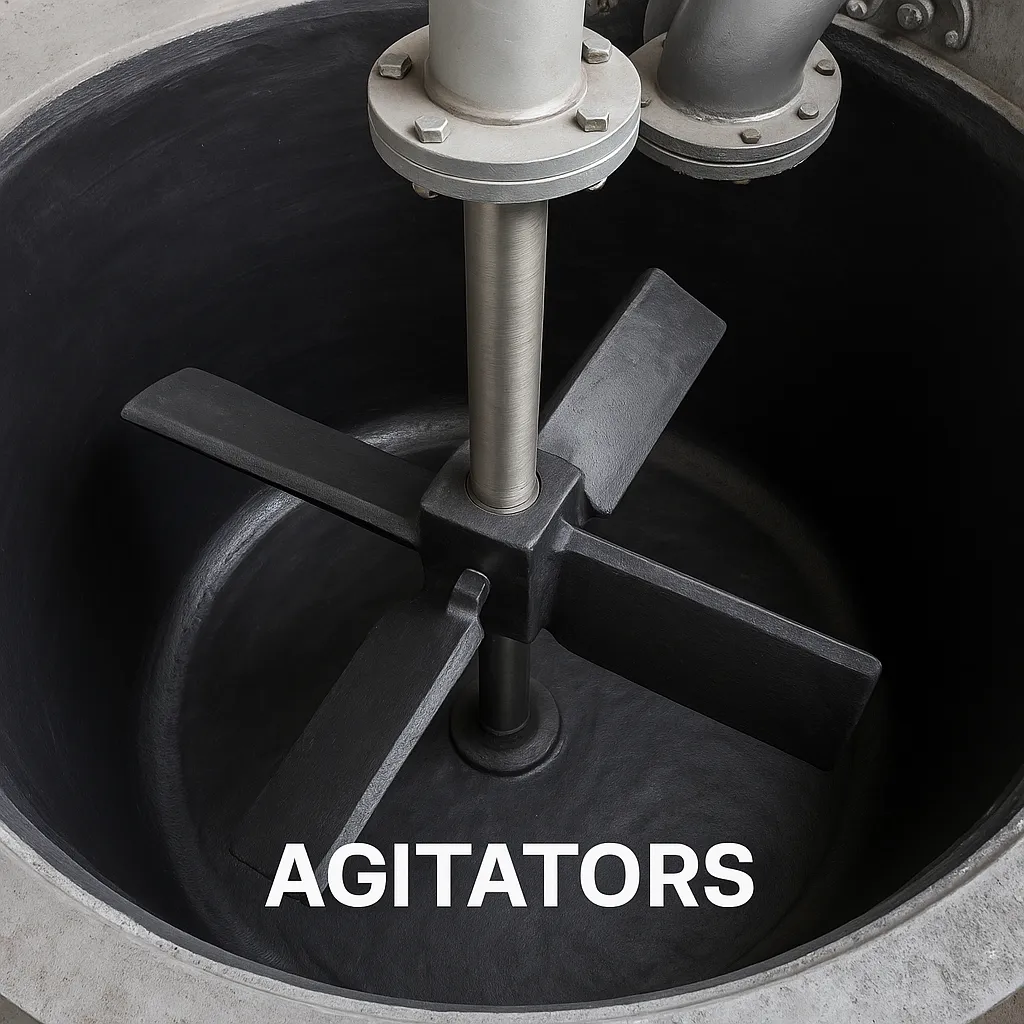

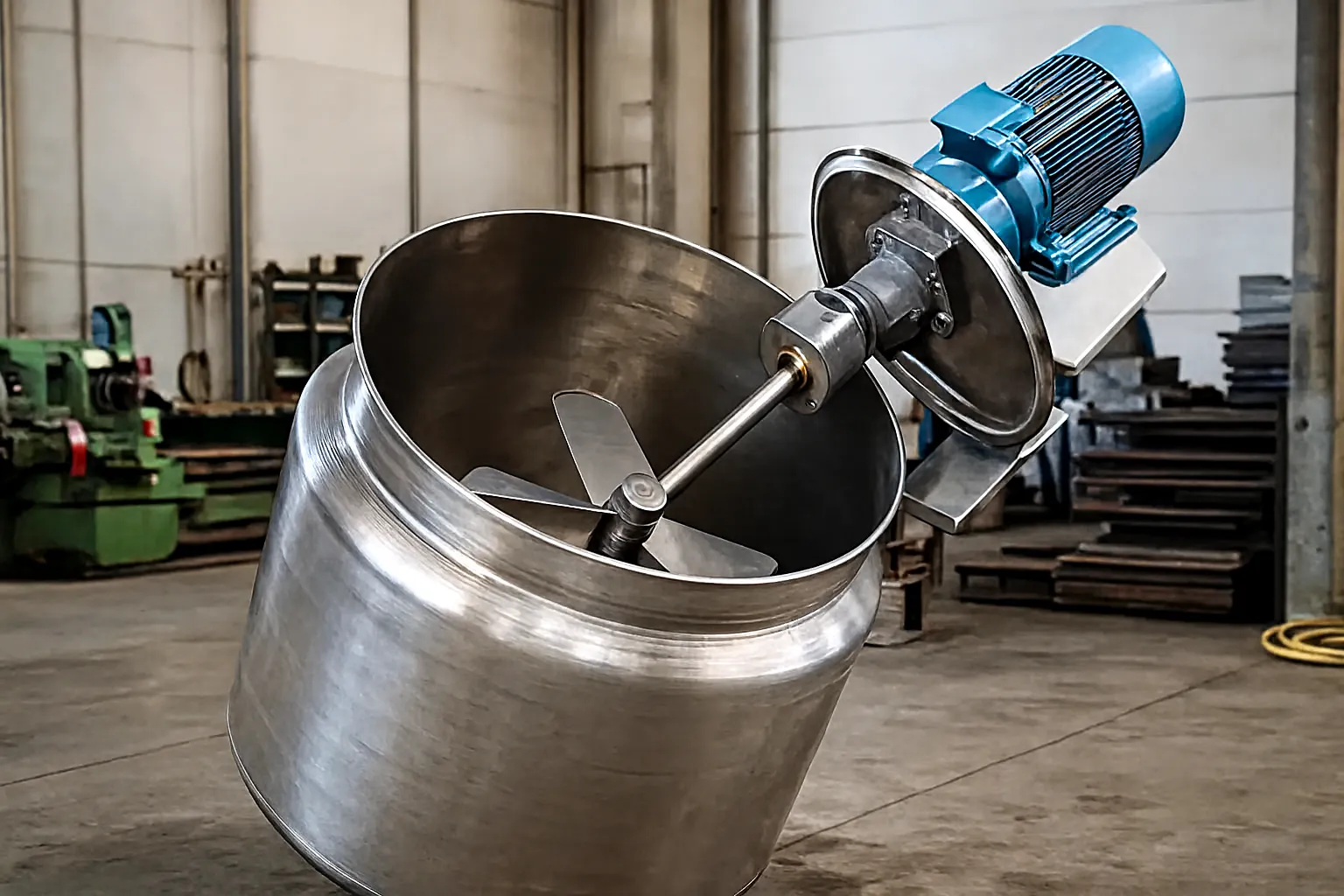

- Agitators
- Flow Meters

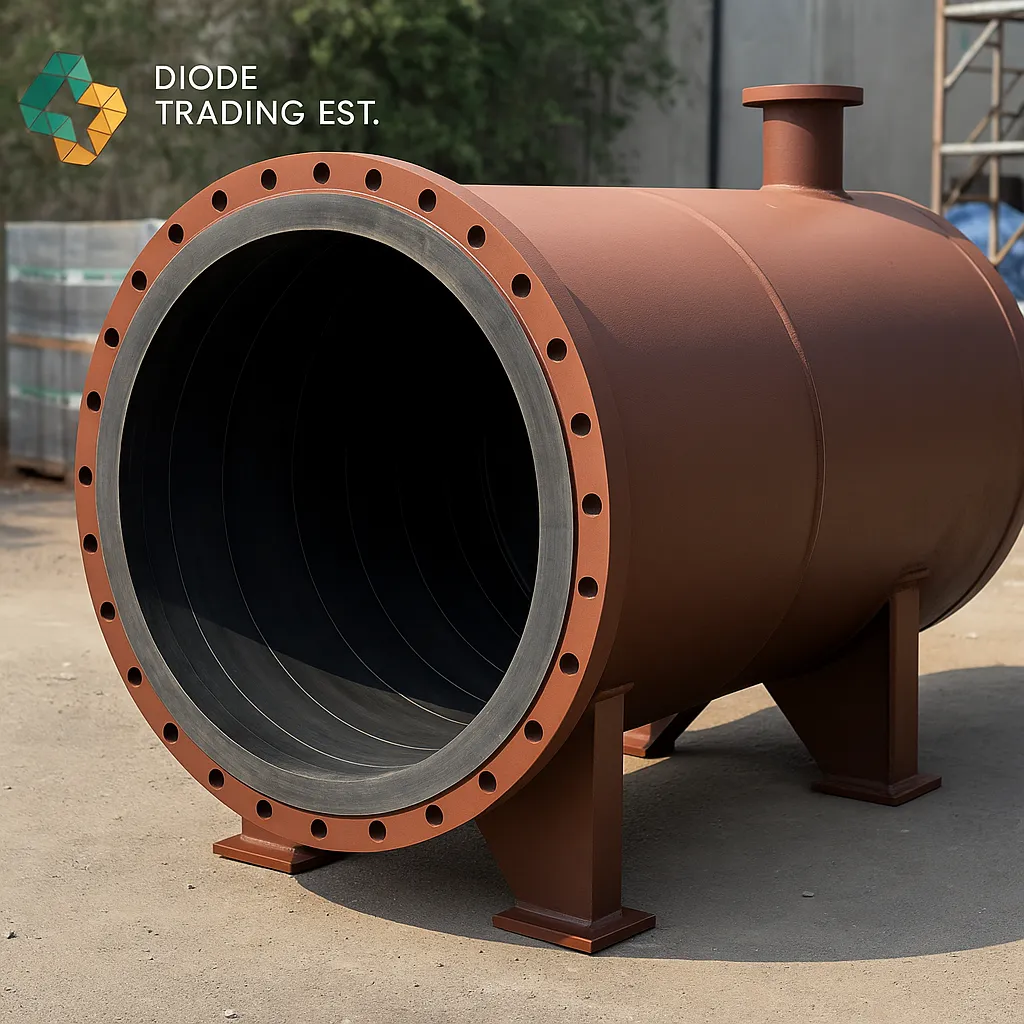

- Chemical Process Vessels
- Hoppers & Chutes

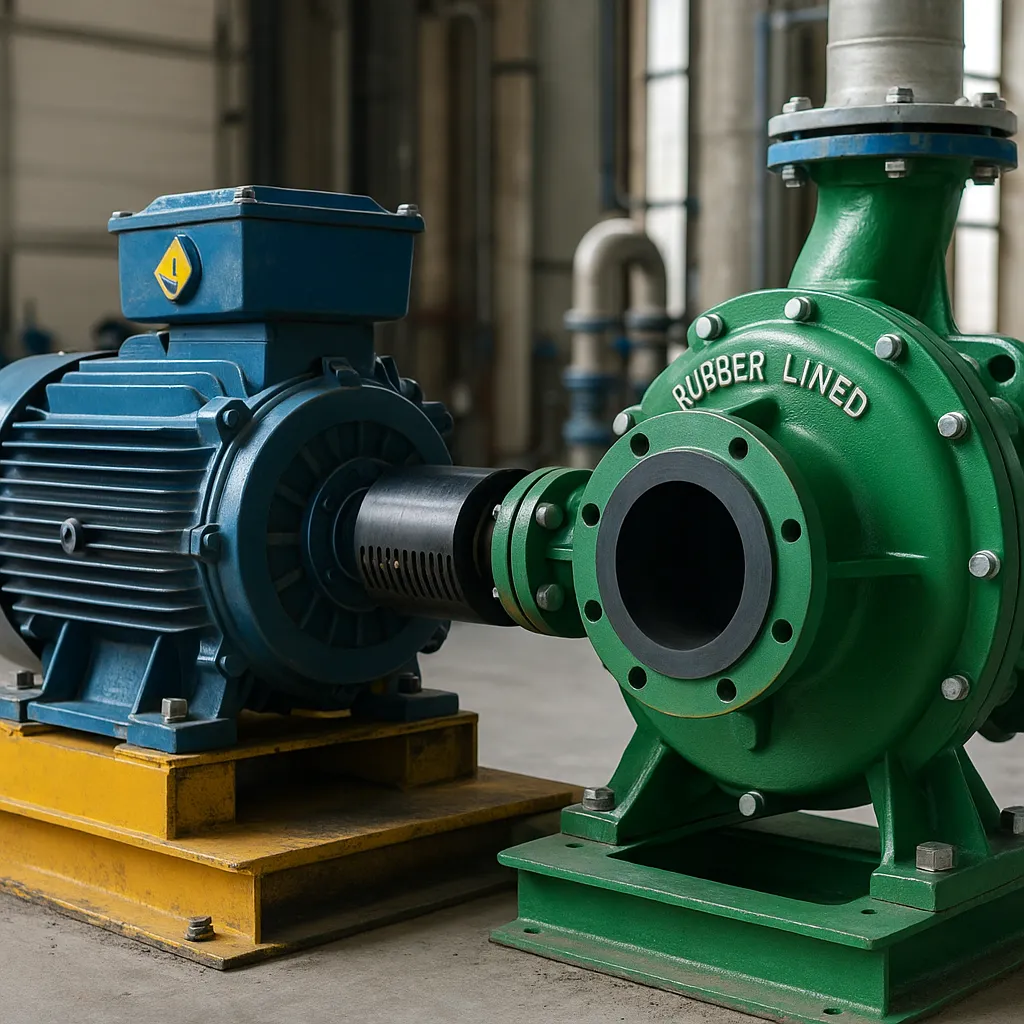

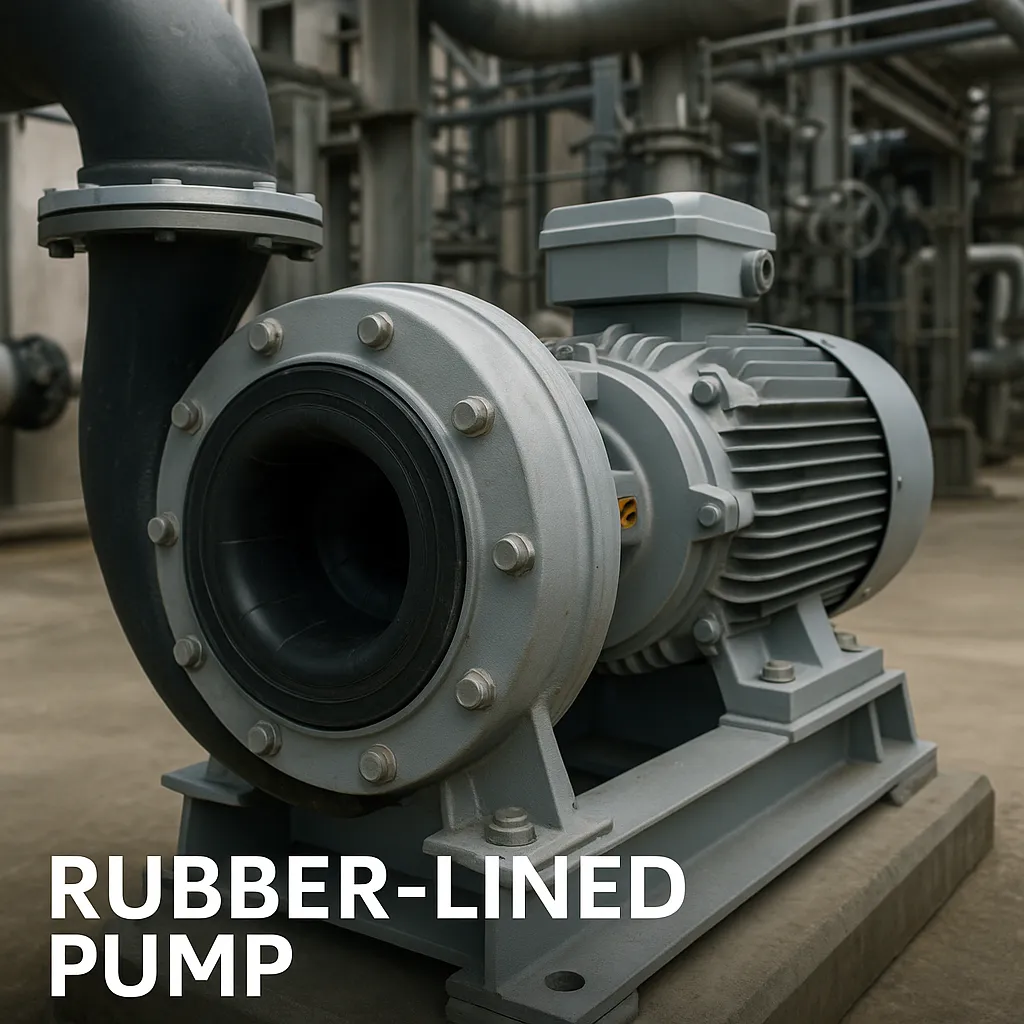

- Pump Components

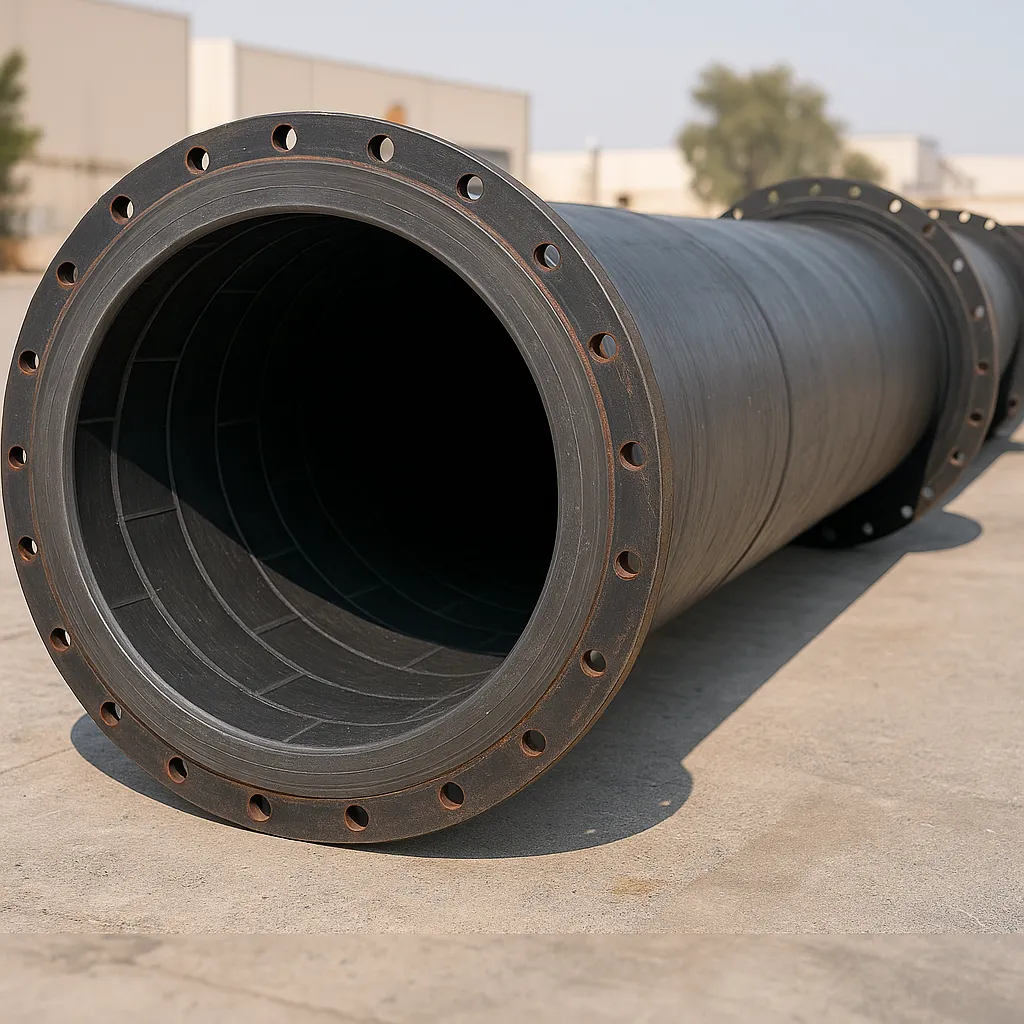

- Steel Piping & Fittings

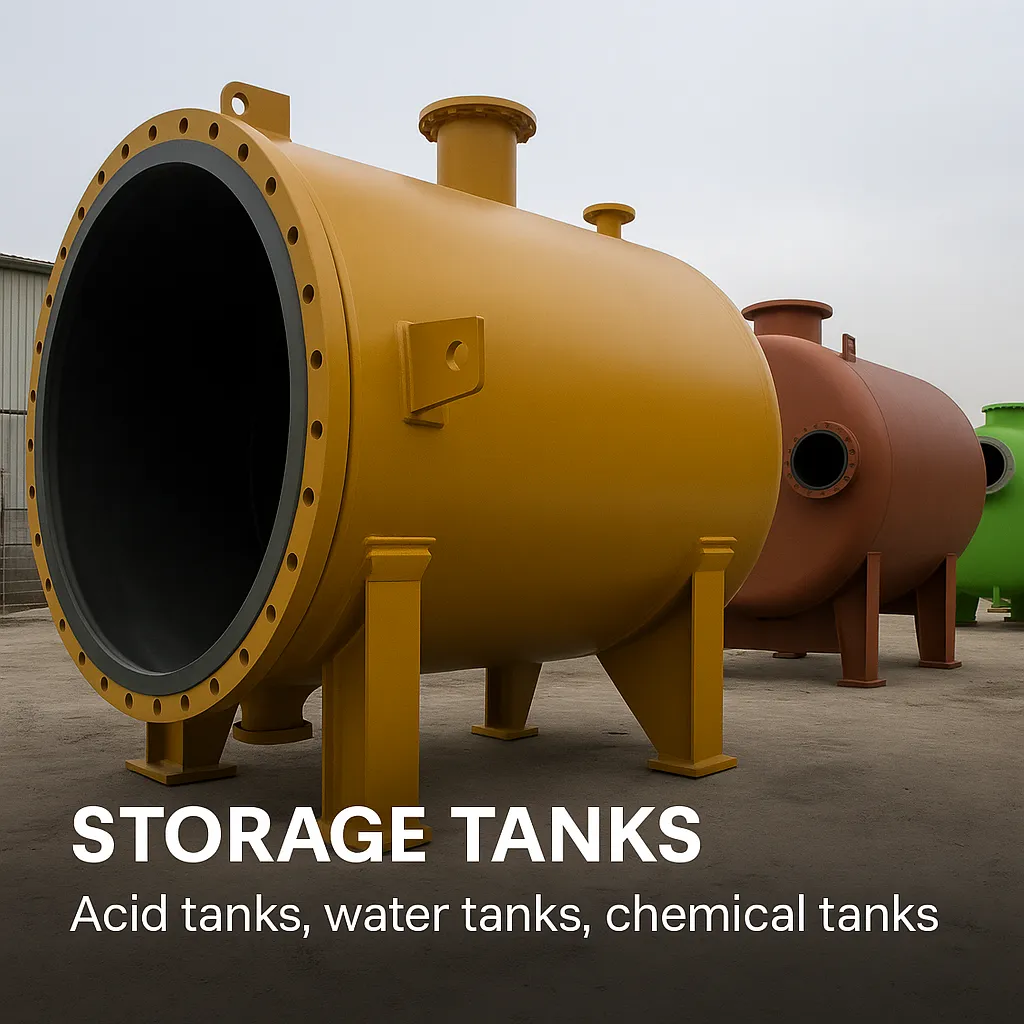

- Storage Tanks
- Valves
- Water Treatment Tanks
Quality Assurance & Testing
Our Dammam workshop features a state-of-the-art laboratory equipped with:
- Rheometer & Tensile Testing Machines
- Ageing Ovens & DIN Abrasion Testers
- Hardness (Shore A & D) Gauges
- Spark & Coating Thickness Testers
- Precision Spring & Dial Gauges
Every project undergoes complete inspection, spark testing, adhesion, and dimensional verification to ensure durability and compliance.
Materials & Global Partnerships
We partner with renowned international suppliers from Europe and North America, ensuring the highest quality rubber compounds with proven track records of over 40 years. Our materials meet or exceed ASTM, ISO, and Aramco/SABIC standards for corrosion and chemical resistance.
Additional Lining & Coating Services
- HDPE Geomembrane Lining: For ponds, landfills, wastewater, and industrial containment
- PU (Polyurethane) Coating: For high-impact and abrasion areas
- FRP & Polyurea Lining: For waterproofing and chemical resistance
- Epoxy and Composite Coatings: For pipelines, tanks, and concrete protection
Industries We Serve
- Oil & Gas
- Power & Desalination
- Water & Wastewater Treatment
- Mining & Quarrying
- Fertilizers & Petrochemicals
- Marine & Dredging
- Cement & Construction
Our Strengths
- Highly experienced applicators with 15–20 years of field experience
- Dedicated Project & QA/QC team for quality control
- 24/7 service capability with mobile lining teams
- Strategic Dammam location near major industrial clients
- Over 250,000 m² of rubber lining completed successfully
Benefits of Rubber Lining
- Extends service life of critical assets
- Prevents corrosion and leaks
- Reduces maintenance and downtime
- Ensures product purity and safety
- Cost-effective versus equipment replacement
Commitment to Excellence
At Diode Trading Establishment, we combine technical expertise, quality materials, and customer commitment to deliver superior corrosion protection systems that perform reliably in Saudi Arabia’s harsh industrial environments. We continue to innovate and expand our service capabilities to meet the evolving needs of clients across the GCC.
Best Industrial Rubber Lining Solutions in Saudi Arabia
Industrial rubber lining solutions in Saudi Arabia are essential for shielding equipment from abrasion, chemicals, corrosion, and harsh working environments. Diode Trading EST is offering high-quality rubber lining systems for pipes, containers, storage tanks, and factory floors. Our products help reduce maintenance, extend equipment life, and maximize efficiency. We use premium-grade rubber materials and advanced techniques to ensure durable and long-lasting protection for critical industrial sheets. So, connect with us today and get the best industrial rubber lining solutions at affordable rates.

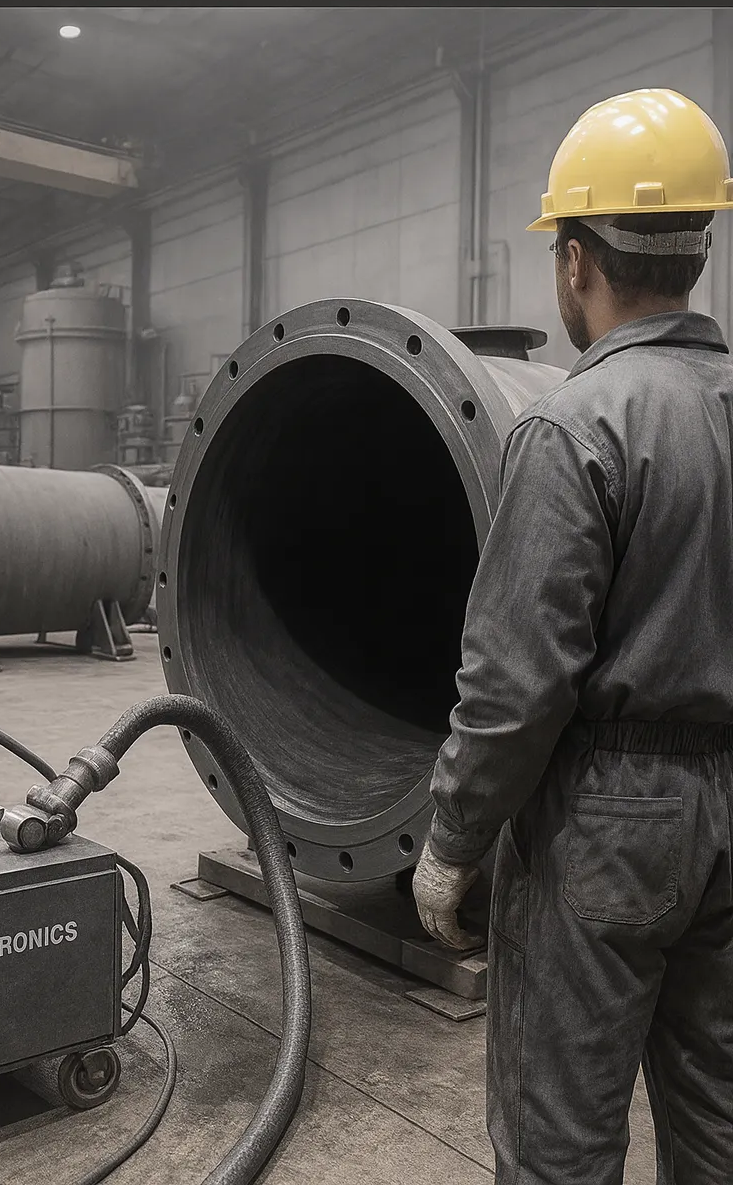

Connect with the Top Industrial Coating Suppliers in Saudi Arabia
The best industrial rubber linings are closely linked with high-quality industrial coatings. These three protect against corrosion, abrasion, chemicals, and wear. Rubber linings offer superior impact resistance and flexibility, while high-performance coatings provide chemical resistance, heat shielding, and long-lasting durability. At Diode Trading EST. we are the top-notch industrial lining services in Saudi Arabia. Our industrial coatings enhance performance in demanding industrial settings, including mining, power plants, chemical processing, and wastewater treatment.
Avail Yourself of the Best Industrial Lining Services in Saudi Arabia
Industrial rubber lining solutions are vital across industries such as mining, power generation, and the chemical industry. The main reason is that these industries also need corrosion, abrasion, and chemical protection. Finding high-quality industrial lining is very challenging, but in our store, you can get the best industrial rubber coating in Saudi Arabia. So, what are you waiting for? Connect with us for the best-quality material at an affordable price.
Industrial Rubber Lining Solutions – FAQs
Q1. Where are rubber linings commonly used?
A. Rubber linings are mainly used in chemical processing, mining, power plants, and other industries where chemical exposure occurs.
Q2. What is the cost of the rubber linings?
A. The prices of rubber lining at Diode Trading EST are based on material quality, thickness, surface area, and application. You can get the best industrial lining services in Saudi Arabia at an affordable price.
Q3. What types of rubber are used for the industrial lining?
A. Examples of these types of rubber include natural rubber, neoprene rubber, EPDM rubber, butyl rubber, nitrile rubber, and hypalon rubber, selected based on their resistance to chemicals and operating temperatures.

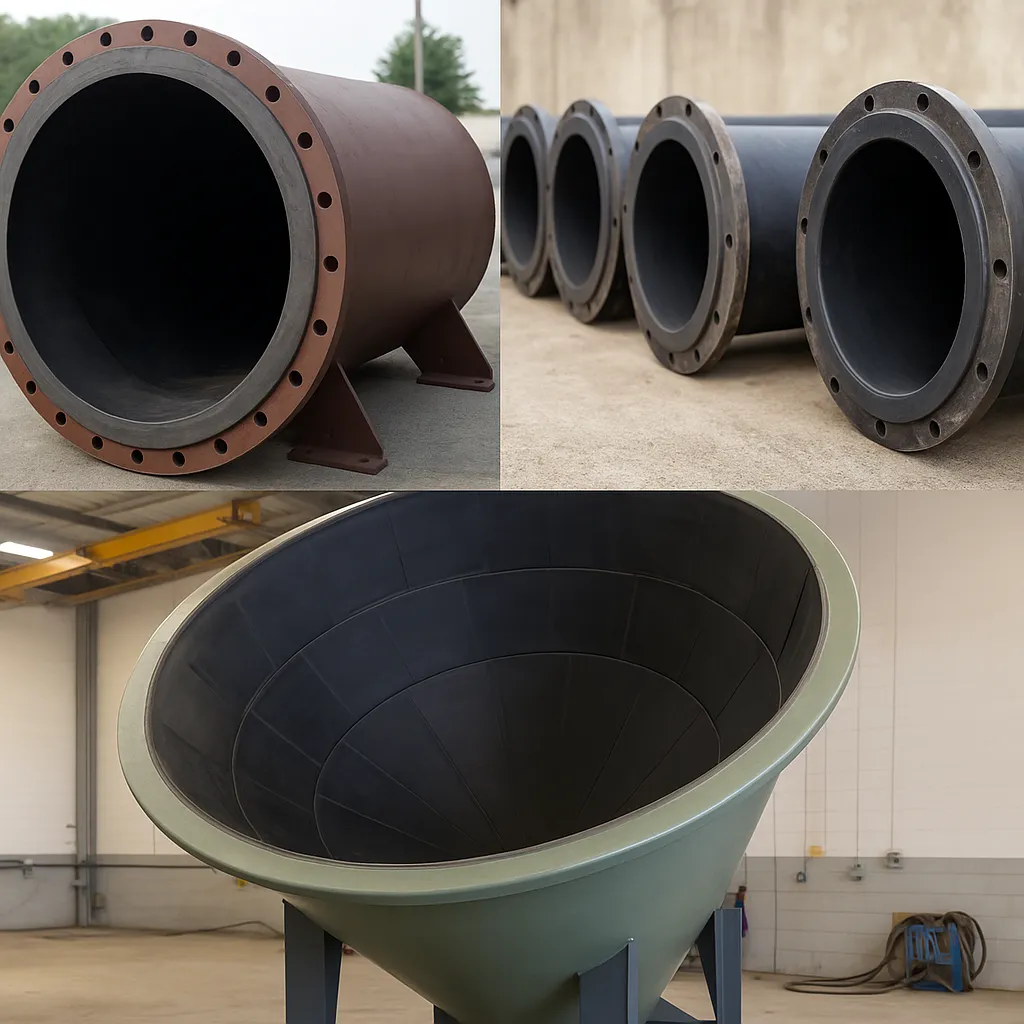

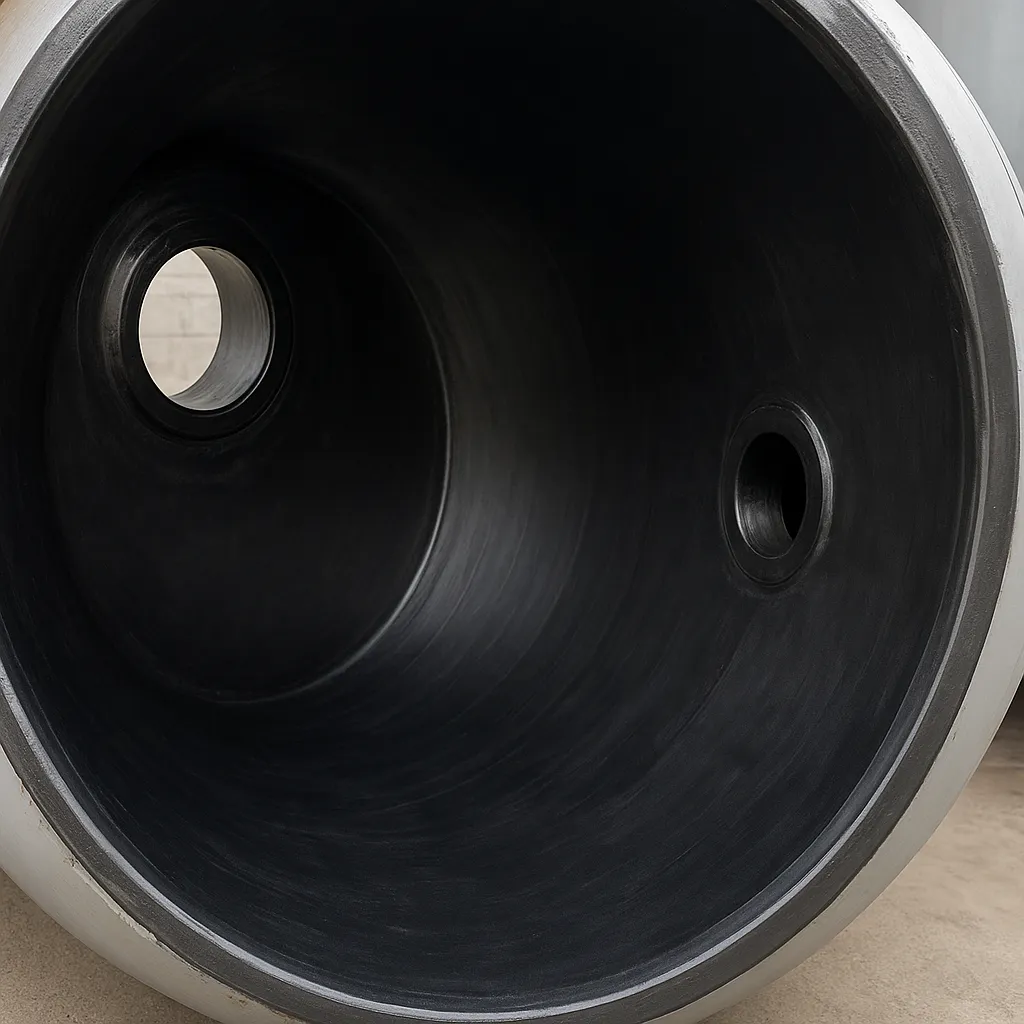

Industrial Rubber Lining Solutions Product Gallery
