Industrial PVC Interlocking Tiles
Technical Specification
INTRODUCTION
Industry PVC Interlocking Tiles from DIODE TRADING EST are purpose-built to endure heavy industrial, commercial, and automotive use. Made to withstand heavy mechanical loads, the presence of forklifts, pallet trucks, chemicals, abrasion, and continuous work cycles, these tiles offer long-term performance with minimal downtime.
KEY FEATURES & BENEFITS
- Heavy-load area capacity for forklifts, pallet trucks, and other industrial machinery
- High mechanical and chemical resistance
- Fast, disruption-free installation
- Renovation is 80% quicker than old or worn floors
- R10 anti-slip for safety
- Up to 12 years warranty and 25 years service life
- Great point load resistance (up to 520 kg/cm²)
- Heat and sound insulation to improve working comfort
- Simple replacement of tiles one by one
- Suitable for uneven or old subfloors
- Environmentally friendly: 100% recyclable, ECO versions available
TECHNICAL SPECIFICATIONS
| Parameter | Value |
|---|---|
| Tile dimensions | 510.5 × 510.5 mm |
| Thickness | 7 mm |
| Approx. weight | 2.3 kg per tile |
| Material | Homogeneous 100% PVC, recyclable |
| Surface Finishes | Diamond, Coin, Leather, Skin (variant dependent) |
| Slip resistance | R10 (most designs) |
| Compressive strength | 520 kg/cm² |
| Reaction to fire | Bfl-s1 (according to EN 13501-1) |
| Chemical resistance | Resistant to various common chemicals |
| Wear layer/abrasion | Group T, very high abrasion resistance |
| Castor chair suitability | Suitable for castor chairs |
| Temperature for installation | 18–26 °C, subfloor ≥ +15 °C |
| Warranty | Up to 12 years |
Product Type: Heavy-duty homogeneous PVC interlocking tile
Dimensions: 510.5 × 510.5 mm
Thickness: 7 mm
Weight: 2.3 kg
Material: 100% homogeneous PVC
Surface: Diamond, Coin, Leather, or Skin
Slip Resistance: R10
Compressive Strength: 520 kg/cm²
Fire Classification: Bfl-s1
Chemical Resistance: High
Abrasion Resistance: Fall under Group T
Guarantee: Up to 12 years
Shelf Life: ~25 years
Perfect Temperature for Installation: 18–26 °C (subfloor min. +15 °C)

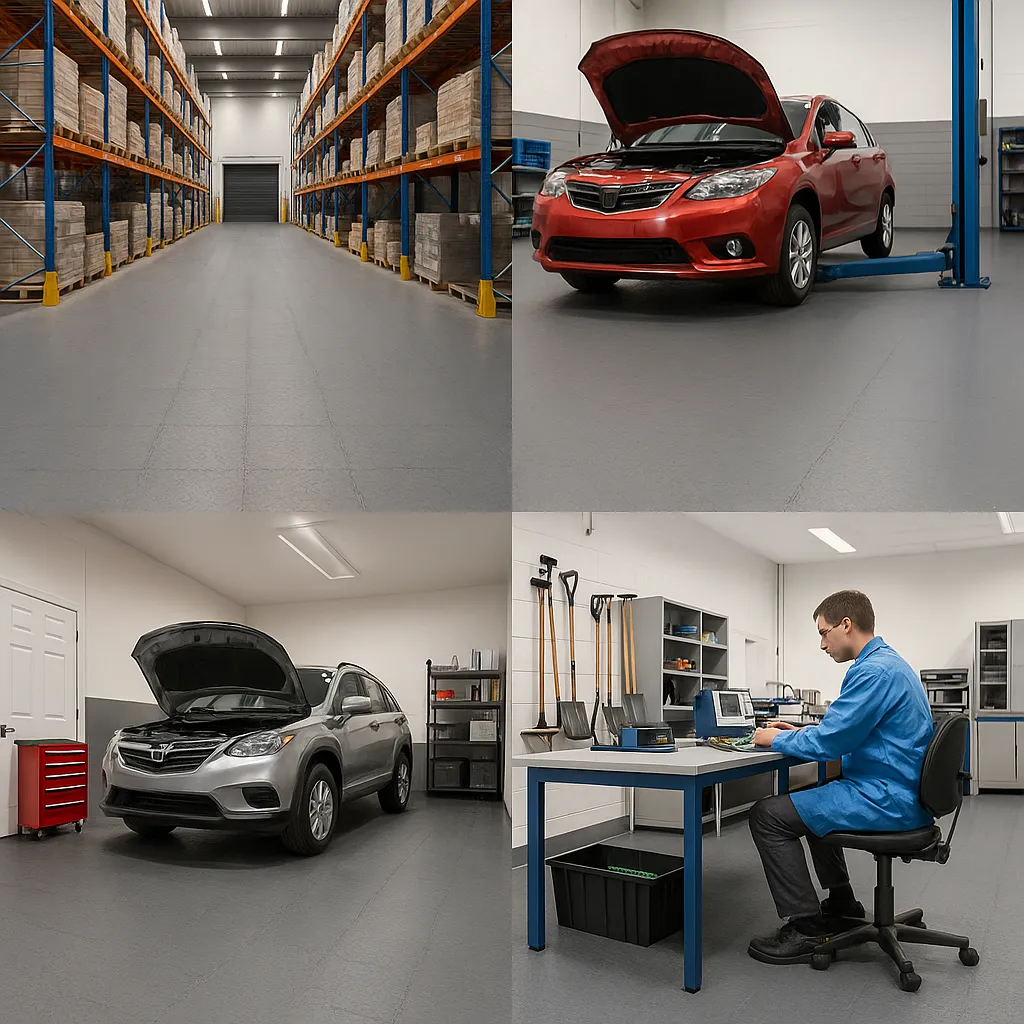

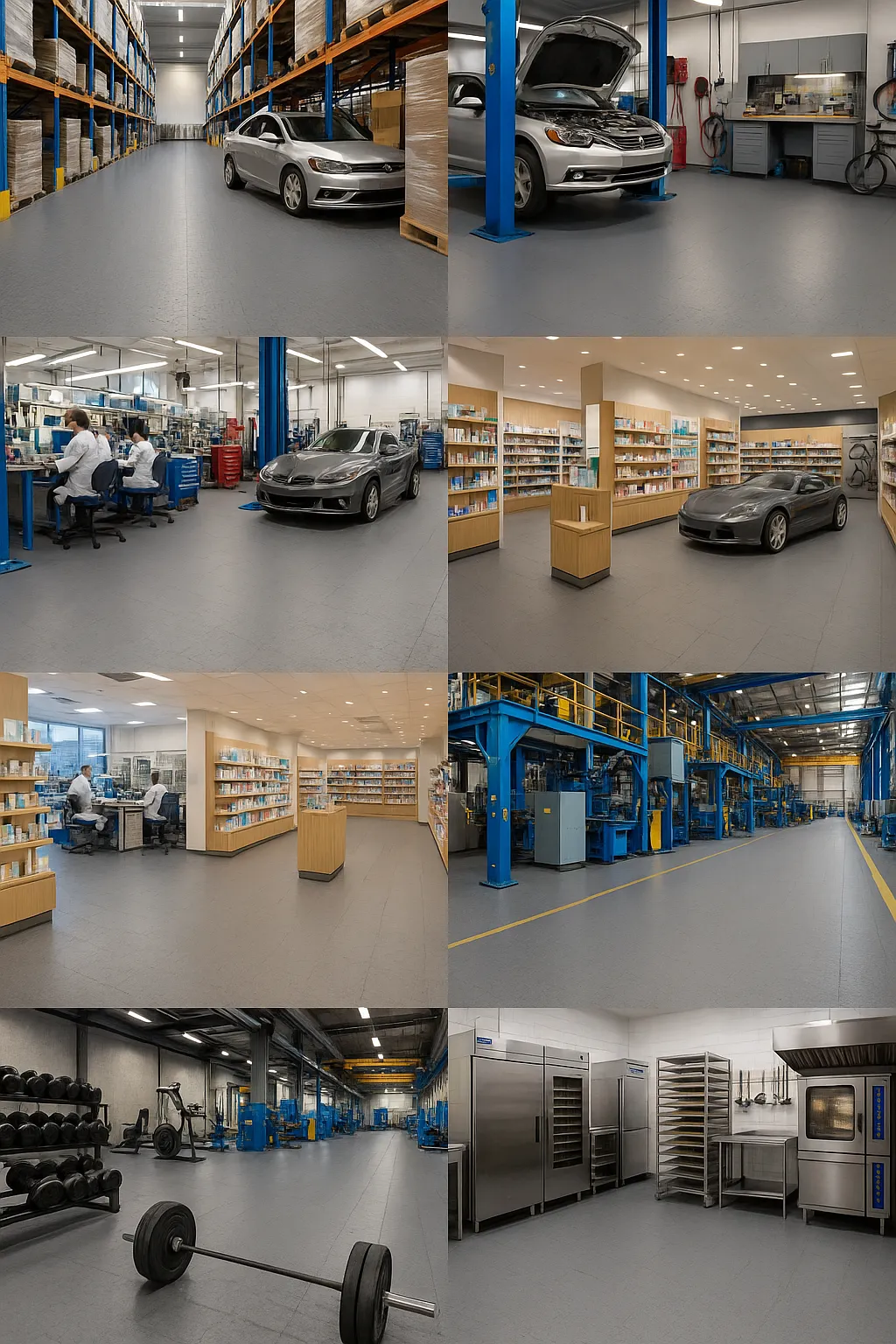

APPLICATIONS & INDUSTRY USE

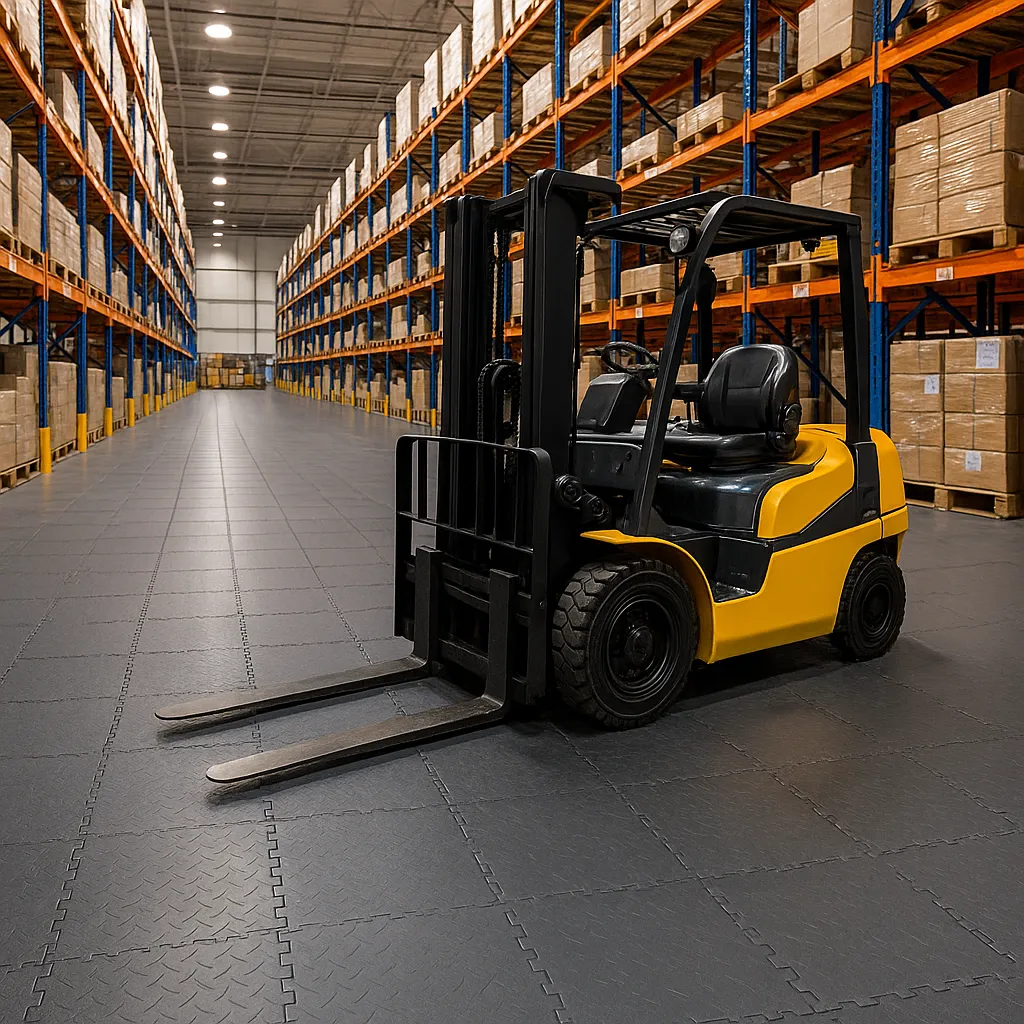

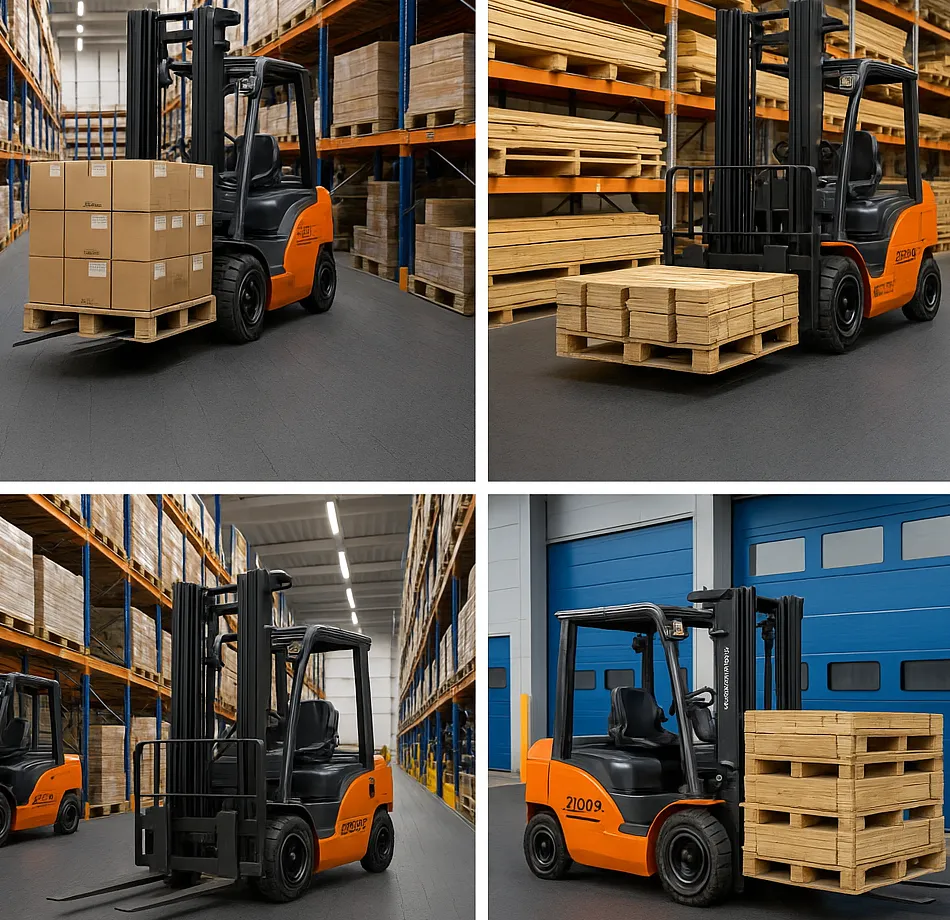

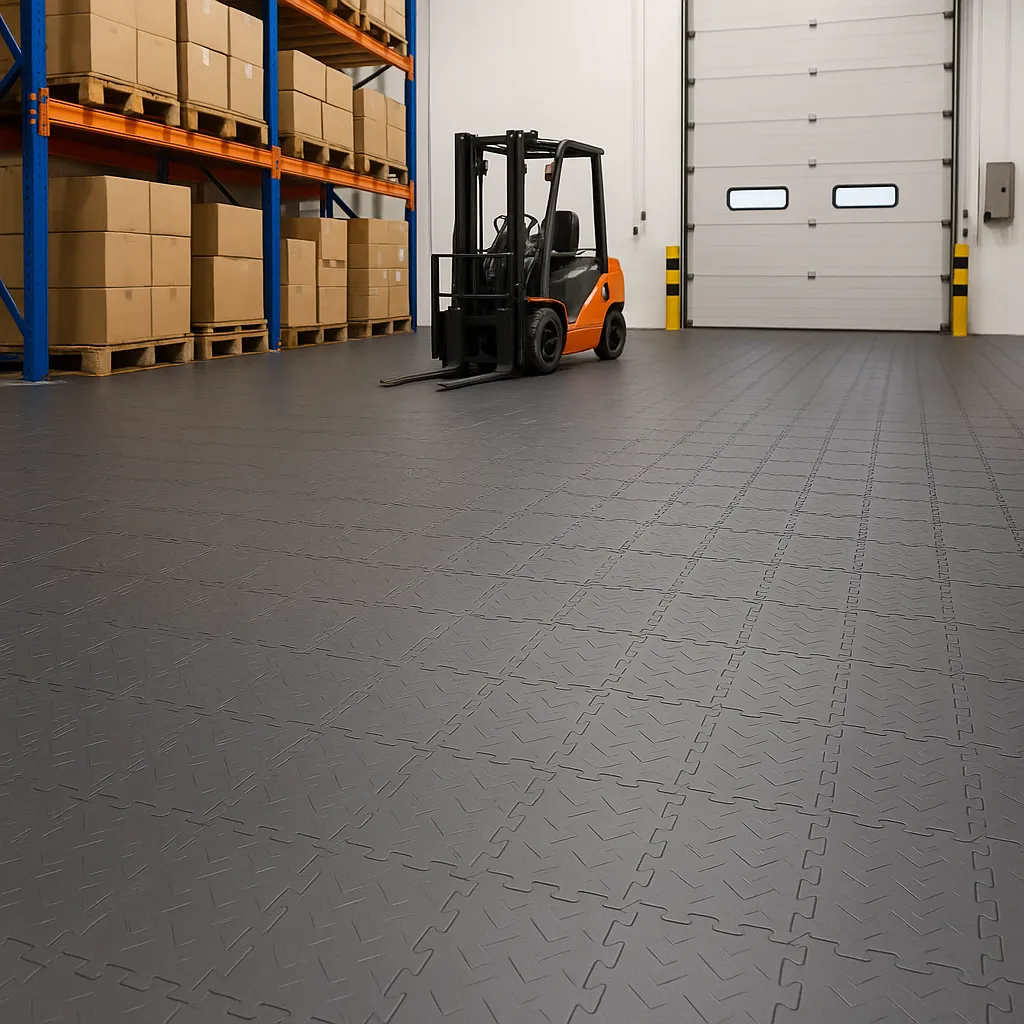

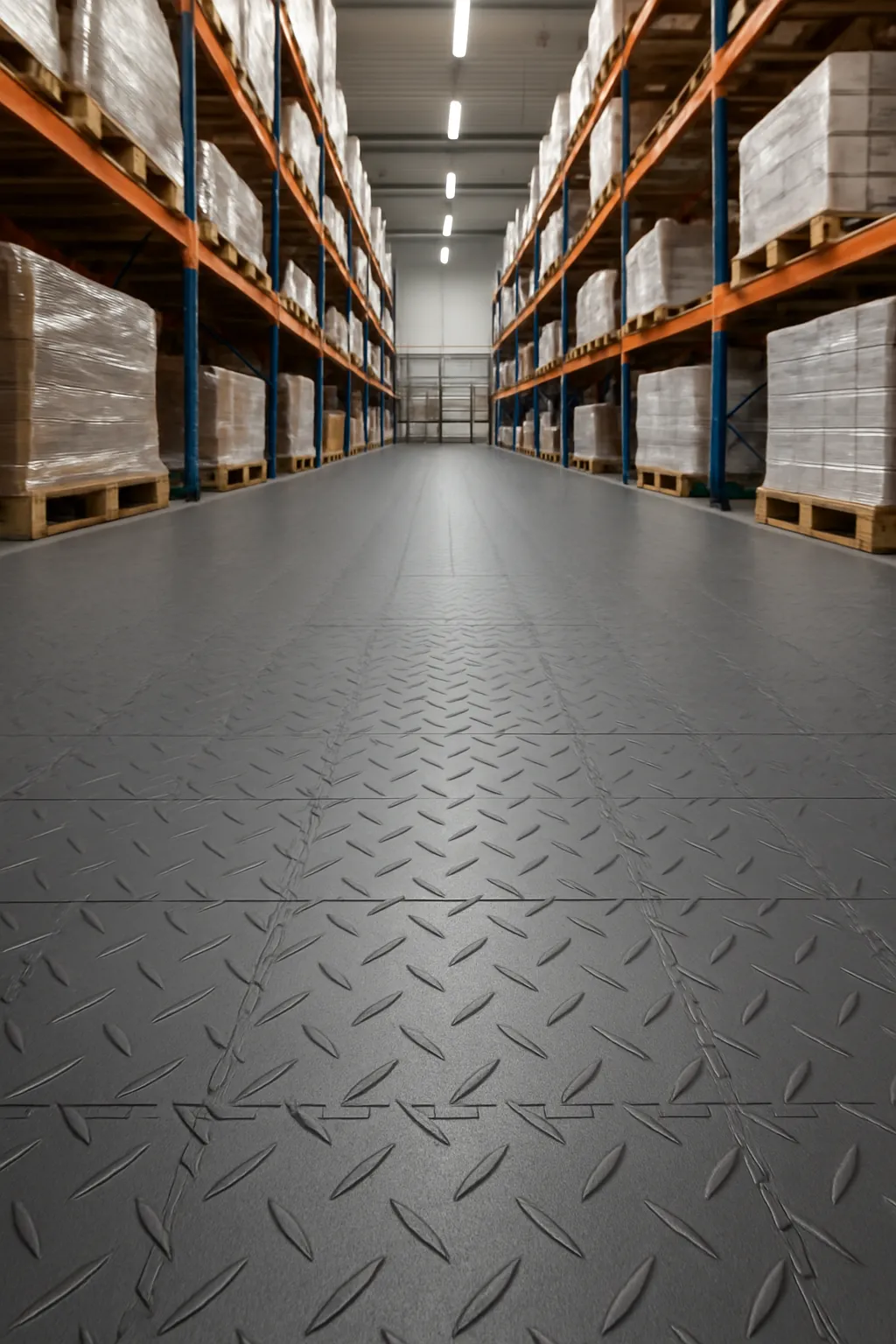

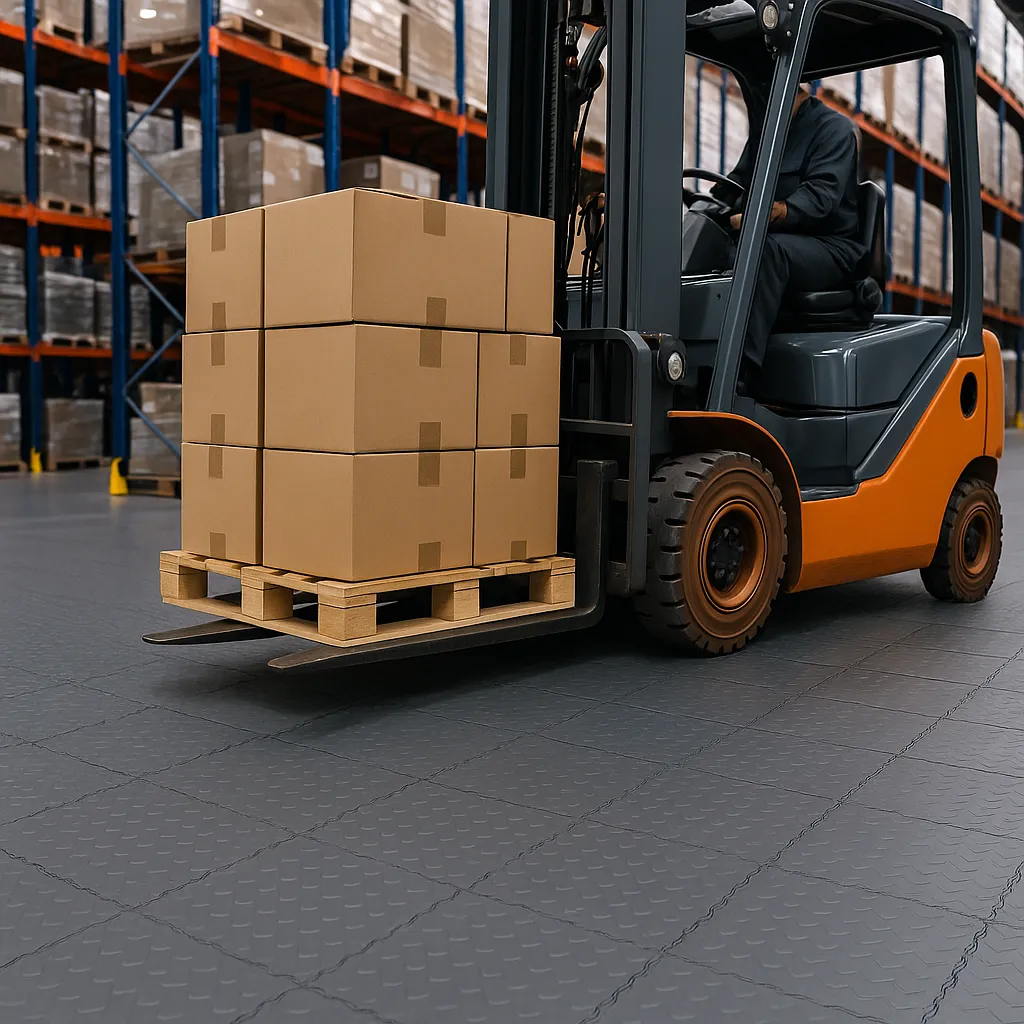

WAREHOUSING & LOGISTICS : Ideal for high-bay storage, distribution centers, forklift aisles, and heavy pallet handling zones.
PRODUCTION & HEAVY INDUSTRY : The most appropriate use of the product is in factories, assembly lines, and areas with heavy machinery that require high durability and chemical resistance.

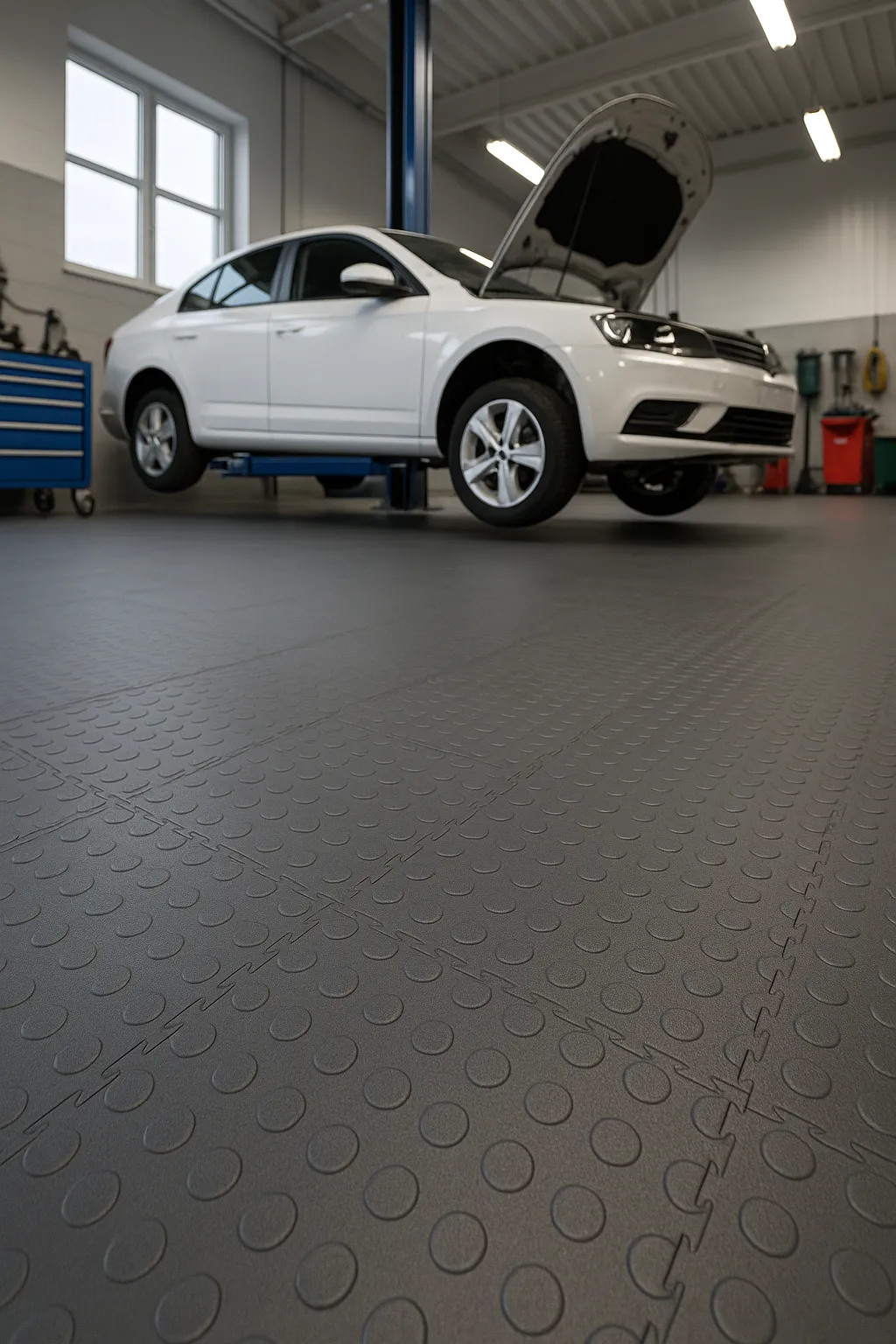

CAR SERVICE & AUTOMOTIVE WORKSHOPS : Excellent resistance to oils, fuels, and greases; maintains a professional workshop environment.

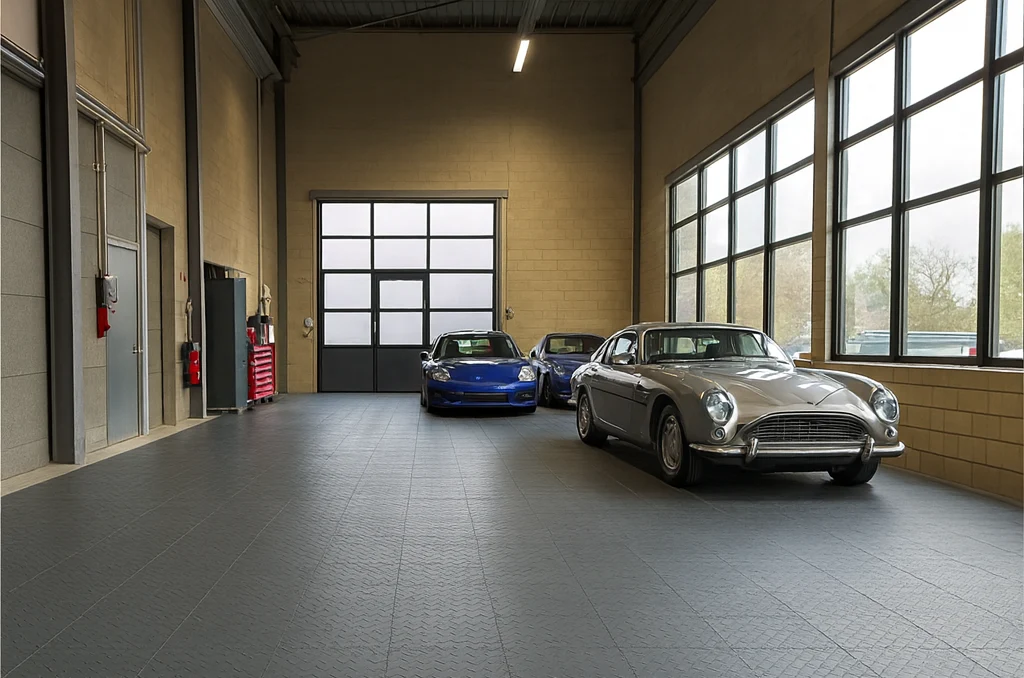

GARAGES (COMMERCIAL & HOME) : Fast installation, insulated surface, non-absorbent, and easy to clean.
ESD ELECTRONICS FACILITIES (ESD VERSION) : The product is designed for use in laboratories, automotive electronics, semiconductor assembly, data centers, and areas at risk of explosion.
RETAIL & COMMERCIAL : Durable, clean appearance for pharmacies, shops, service centers, and public areas.
FITNESS & GYM FACILITIES : Withstands dropped weights, workout machines, and high foot traffic.
CUSTOM WORKSPACES : Perfect for storage rooms, utility rooms, food prep areas, and technical environments.
INSTALLATION DETAILS
- Subfloor preparation should be kept to a minimum
- First, air the tiles for 48 hours (18–26 °C)
- Keep a 5 mm expansion gap around the fixed structures
- Installation without fixing is suitable for standard use
- For huge dynamic loads, try to utilize fixation (tackifier)
- Full gluing is advised if the floor is exposed to direct sunlight, heavy trucks, or extreme temperatures
AVAILABLE COLORS & PATTERNS
Patterns: Diamond, Coin, Leather, Skin
Colors: Black, Graphite, Grey, Blue, Green, Yellow, Red
ECO Colors: ECO Black, ECO Graphite, ECO Grey, ECO Blue, ECO Brown
ACCESSORIES
- Ramps & corners
- Demarcation strips
- Skirting boards
- Cleaning solutions (standard & ESD-specific)
- Grounding kits for ESD tiles
WHY CHOOSE DIODE TRADING EST?
- Professional-grade options for industrial flooring
- Reliable long-term performance
- Fast delivery & expert support
- Wide product range for all industries

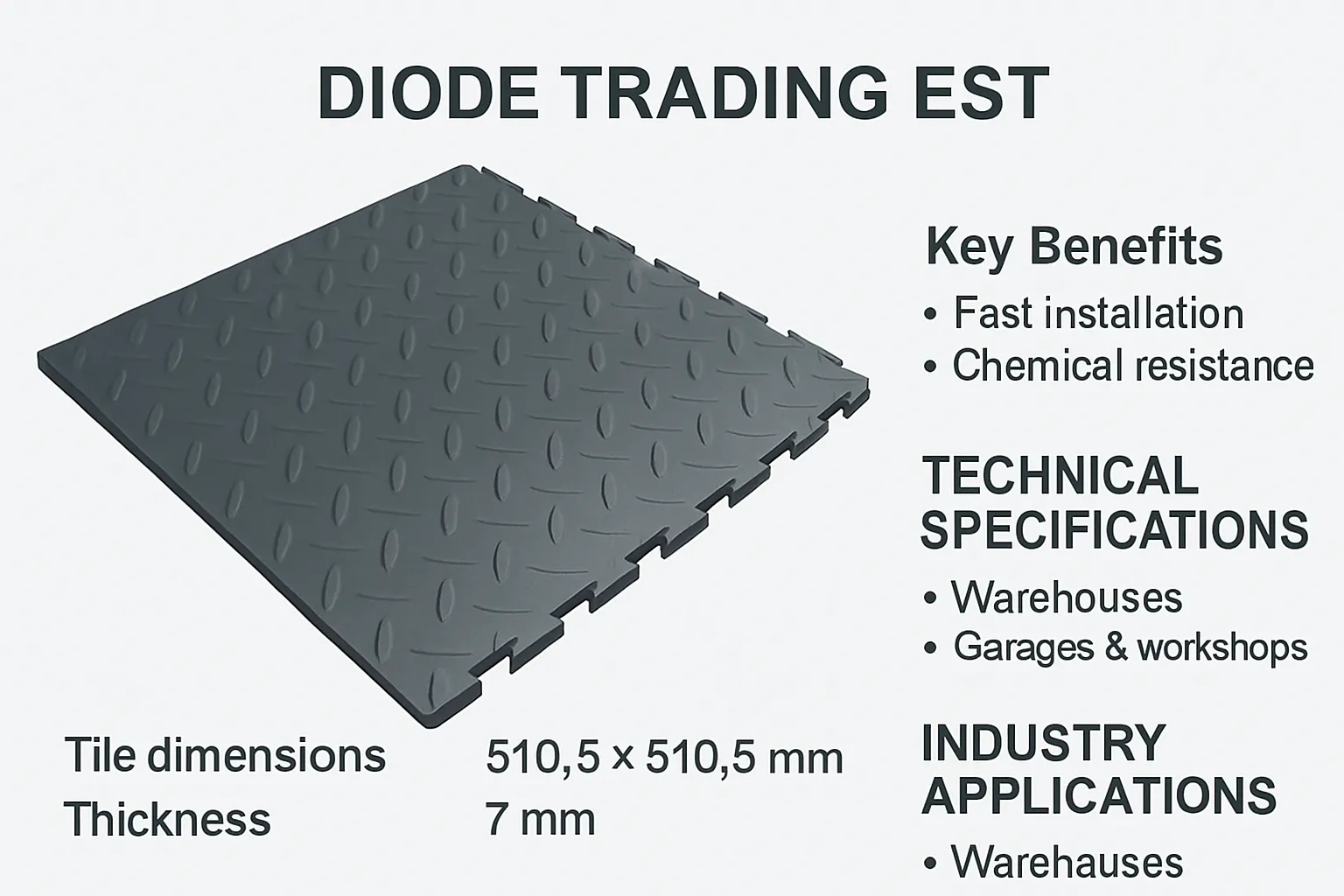

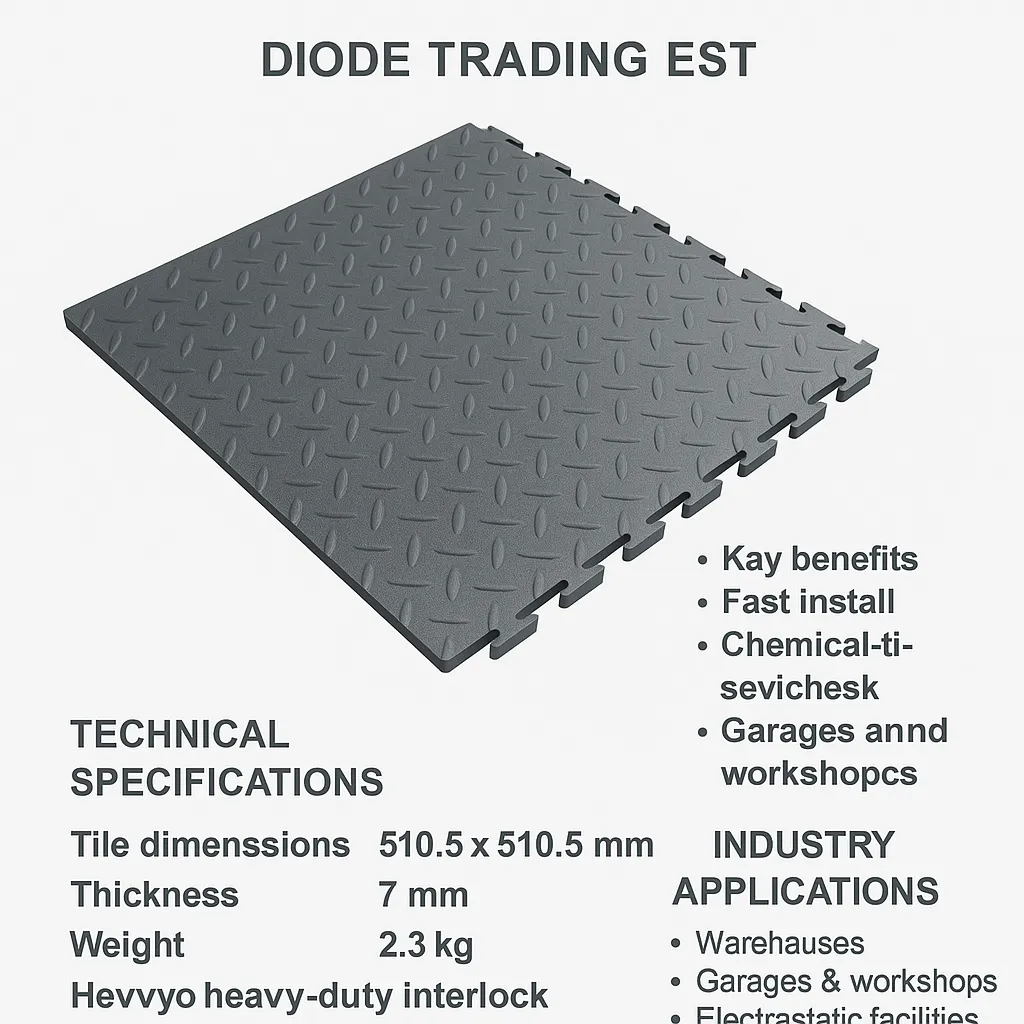

Industrial PVC Interlocking Tiles PRODUCT GALLERY
