Technical Specification
Product Range
Diode Trading EST specializes in the manufacture of high-performance ground protection and temporary flooring systems for heavy-duty industrial applications and large-scale event environments in Saudi Arabia and the GCC.
Diode Trading EST trackway systems use recycled materials and are tough enough to handle years of use. You get sturdy, eco-friendly paths that work on sand, grass, gravel, and hard ground that pretty much anywhere you need them. Heavy equipment, big crowds, trucks, or crews can move around without tearing up the ground. Everything stays safe, and the surface underneath doesn’t get wrecked.
HD – Heavy‑Duty Trackway for industrial and construction environments requiring high load capacity.
LD – Light‑Duty Trackway for events, stadiums, pedestrian access, and turf protection.
Industries Served
- Construction and Infrastructure
- Oil, Gas, Utilities, and Industrial Operations
- Events, Exhibitions, Festivals, and Live Entertainment
- Sports Stadiums, Arenas, and Turf Protection
- Logistics, Warehousing, and Transportation Hubs
- Municipalities, Public Works, and Civil Defense
- Military, Emergency Response, and Disaster Relief
What we bring to the table:
- Temporary access roads that are suitable for both heavy and light vehicles
- Event flooring along with large pedestrian walkways, for the convenience of visitors
- Turf protection for stadiums during concerts, ceremonies, and sports
events
- Pads that have been specially designed for cranes, equipment, and machinery
- Helipads which can be either temporary or semi-permanent, depending on what you require
- Access options for utilities and oilfield operations in remote areas
- Temporary flooring for festivals, VIP zones, exhibitions, and tents
- Transport routes behind the scenes that help to speed up the event setup and takedown
Why choose Diode Trading EST Trackway Systems?
- Made from recycled materials to help lower the carbon footprint.
- Fully recyclable at the end of their life, promoting eco-friendly practices.
- Designed for exceptional durability, weather resistance, and slip-resistance.
- Simple to install and remove, requiring minimal manpower.
- Works well on sand, grass, gravel, artificial turf, and hard surfaces.
- Available in custom colors and translucent options to help extend turf life.
- Compatible with ramps, cable channels, and speed-control accessories.
Technical Specifications – Heavy Duty (HD)
| Specification | Value | Event Company Benefit | Use Case |
|---|---|---|---|
| Load Capacity | 30 tons/m² | Stage area, structurally heavy equipment, and trucks supported | The main access route for production vehicles |
| Tile Dimensions | 500 × 500 × 50 mm | Modular & predictable layout for planners | Roads for large event sites |
| Weight | 3.2 kg per tile | Easy and convenient handling during the fast setup | Rapid deployment crew operations |
| Surface | Vehicle-grade anti-slip | Forklifts and trolleys operate with less wear and tear | Arena + backstage logistics |
| Material | Recycled PP + UV additives | Eco-friendly solution for green events | Long-term outdoor exposure |
| Assembly | 1 × 2 m pre-assembled sheets | Faster build-outs for tight deadlines | Concert & festival setups |
Technical Specifications – Light Duty (LD)
| Specification | Value | Event Company Benefit | Use Case |
|---|---|---|---|
| Load Capacity | 10 tons/m² | Supports crowd movement & small vehicles | Event walkways, F&B routes |
| Tile Dimensions | 600 × 150 × 23 mm | Flexible layouts for creative designs | Tent flooring & booth areas |
| Weight | 550 g per tile | Effortless manual handling | Large footprint events with quick turnover |
| Surface | Non-slip textured | Safe for high foot traffic | Stadium turf protection |
| Material | Lightweight UV-stabilised plastic | Long outdoor durability | Multi-day outdoor events |
| Assembly | Rollable + tool-free clips | Perfect for rapid deployment & recovery | Festivals, exhibitions |
HD vs. LD — When to choose which?
Use Diode Trading EST HD when you need:
- Heavy vehicles (trucks, machinery)
- Strong load distribution (up to ~30 tons/m²)
- Temporary roads, pads, logistics/industrial surfaces
- 50 mm structural depth for demanding applications
Use Diode Trading EST LD when you need:
- Pedestrian walkways or event flooring
- Light vehicles/trolleys on hard, dry ground
- Extremely fast deployment and extensive coverage
- Grass-safe pedestrian surfaces
Diode Trading EST HD – Heavy Duty Trackway>
Description
The HD system consists of robust interlocking tiles that connect to form large, load-bearing surfaces. These tiles enable temporary roadways, staging areas, helipads, and storage pads over hard ground or sand.
Features & Benefits
- High load capacity– Each tile supports up to 30 tons per m² (6.21 MPa / 900 psi) on hard surfaces or sand.
- Durable construction– Made from a recycled+virgin PP blend with UV and compatibiliser additives.
- Anti-slip vehicle-grade surfacewith punch-through stake holes for anchoring.
- Tile dimensions– 500 mm × 500 mm × 50 mm (0.25 m² per tile).
- Lightweight handling– Approx. 8 kg per m² or **3.2 kg per tile.

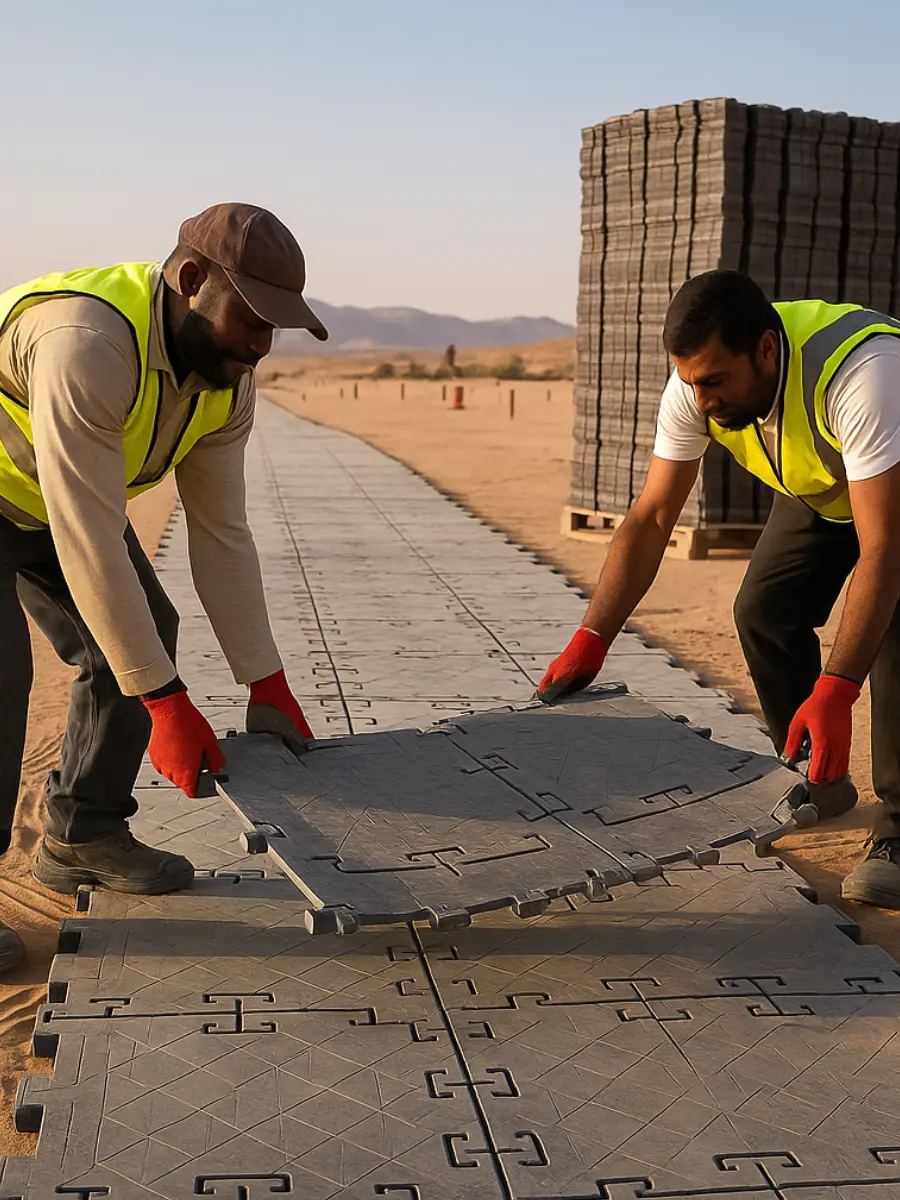

- Fast assembly– Tiles can be pre-assembled into 1 m × 2 m sheets, speeding installation.
- Eco-friendly– Over 70 % recycled content, fully recyclable.
- Accessories– Ramps, cable channels, and speed humps interlock via the T-lock system.
Packing & Logistics
- Pallet– Each pallet holds 43 m² (1.2 m × 1.2 m × 2.3 m) with 4 tiles per layer over 43 layers.
- 40 ft trailer– Approx. 946 m² per trailer; 22 pallets per flatbed.
- 40 ft container– Approx. 860 m² per container; 20 pallets.
Typical Applications

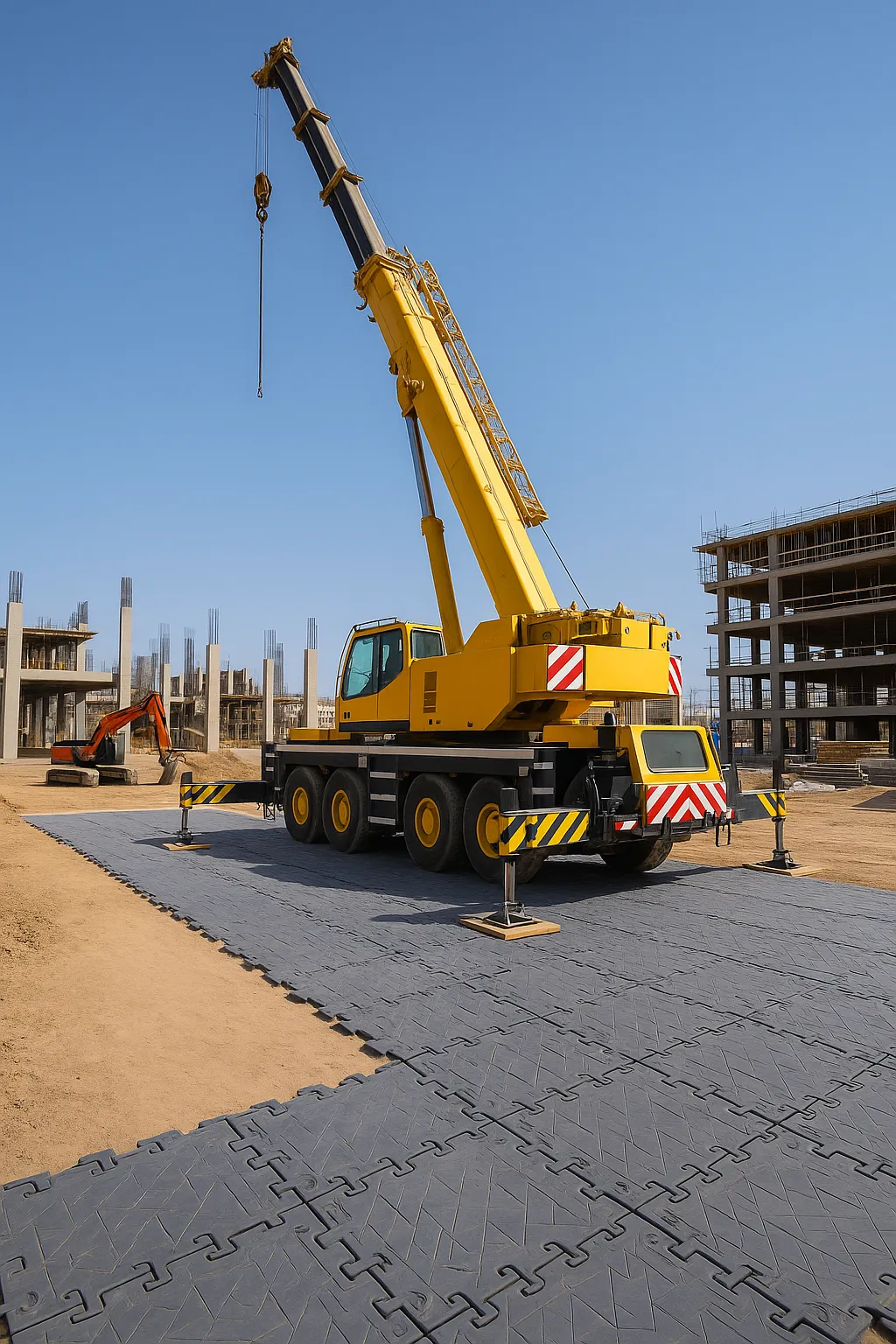

- Temporary roads, crane pads & logistics yards
- Maintenance & remote site operations
- Helipads and aircraft service areas
- Emergency response & military deployments
Diode Trading EST LD – Light-Duty Trackway
Description
The LD trackway is a lightweight, clip-together system for events, stadiums and pedestrian zones. It provides a smooth, uniform surface with ramp edges to minimise trip hazards.
Features & Benefits
- Quick deployment– Panels clip together with no tools or locks.
- Lightweight material– Made from UV-stabilised, non-slip plastic; panels roll up for fast deployment and recovery.
- Pedestrian & light-vehicle friendly– Supports foot traffic and buggies; point-load tested to 10 tons/m².
- Fire performance– Rated ASTM E84-20 FSI 75 / SDI 1000.
- Panel size– 600 mm × 150 mm × 23 mm, weighing 550 g.
- Surface area– 09 m² per tile and supplied in 1.2 m × 2.1 m sheets (2.52 m²).
- Ramp tiles– Available in matching lengths (600 mm × 150 mm).
- Transport & storage– Single pallet covers 113 m²; double pallet 226 m². A 20 ft container holds 1 130 m², while a 40 ft container carries 2 260 m².
Typical Applications

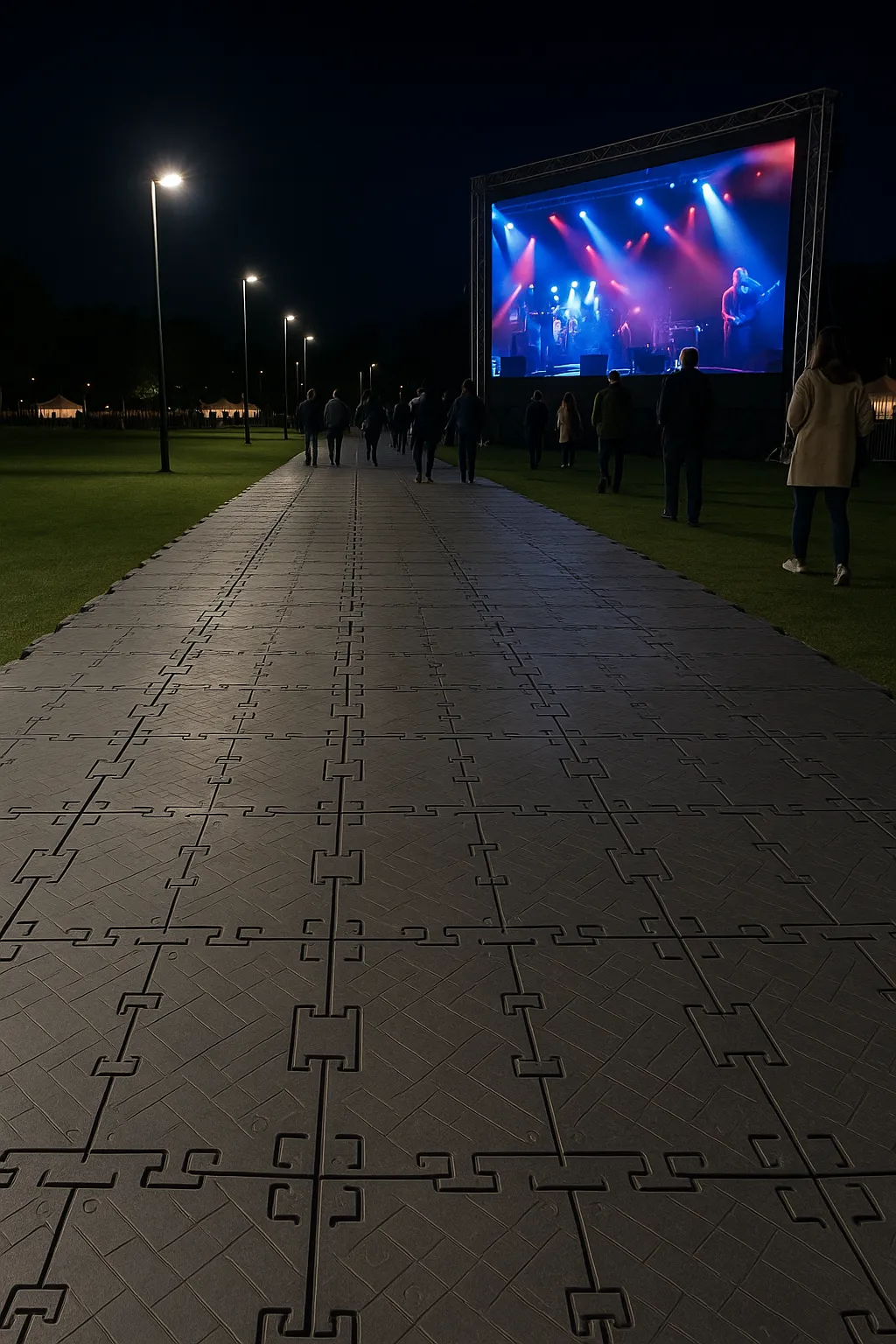

- Concerts, festivals & sporting events
- Stadium turf & grass protection
- Walkways across pavements, lawns, tent floors & back-of-house areas
- Light-vehicle access on compacted surfaces
Industries Served
Diode Trading EST ground protection systems support a wide range of sectors:
- Construction & Infrastructure: Temporary access roads, crane and heavy-equipment pads, site compound
- Oil & Gas / Utilities: Need to get into remote spots for pipelines or keep up with maintenance tracks? We’ve got you covered.
- Events & Hospitality: Rescue stadium turf, arrange public walkways, design VIP zones, or install strong tent flooring.
- Logistics & Warehousing: Manage overflow yards, hide seasonal inventory, or pile up containers smoothly.
- Military & Emergency Response: Create a firm ground quickly, although the nature might be difficult.
- Municipal & Sports Facilities: Shield parks, maintain sports fields, or lay out temporary paths for crowds.
Ground Protection Solutions – Diode Trading EST HD & LD Trackway Systems
Premium Temporary Ground Protection for Heavy Duty & Light Duty Applications
At Diode Trading EST, we don’t cut corners. Our temporary flooring and trackway systems are rugged, dependable, and set up fast. You need a surface that holds up under pressure something solid when you need it most. That’s precisely what we deliver. Whether you need heavy-duty access roads for machinery or a safe, pedestrian-friendly walkway for events, our HD and LD product ranges offer reliable and sustainable ground protection for every environment.
Why Choose Diode Trading EST Ground Protection Systems?
Trackway products keep delicate surfaces safe, make sites less risky, and help people and vehicles move around smoothly, whether it’s on a worksite, at a big event, or for commercial jobs.
Key Benefits
- High compressive strength for heavy vehicles
- Fast installation with minimal labor
- UV-stabilised, weather-resistant materials
- Reusable and recyclable to reduce long-term costs
- Suitable for sand, compacted soil, asphalt, concrete, grass (LD only)
- Versatile modular design for custom layouts
Diode Trading EST HD – Heavy Duty Ground Protection Tiles
Engineered for Industrial-Grade Load Performance
Our HD tile system provides exceptional load-bearing performance for a range of applications, including temporary access roads, heavy machinery pads, construction support areas, and logistics yards.
Ideal Applications

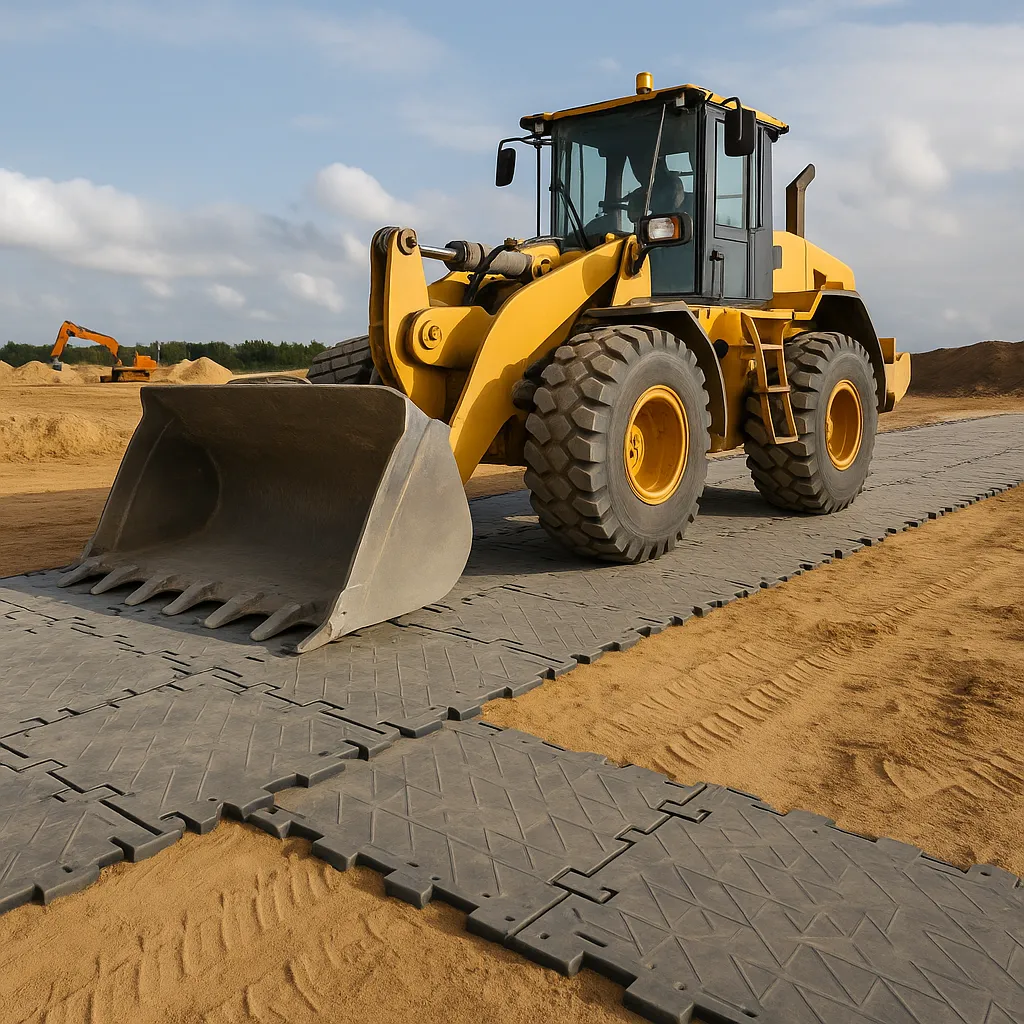

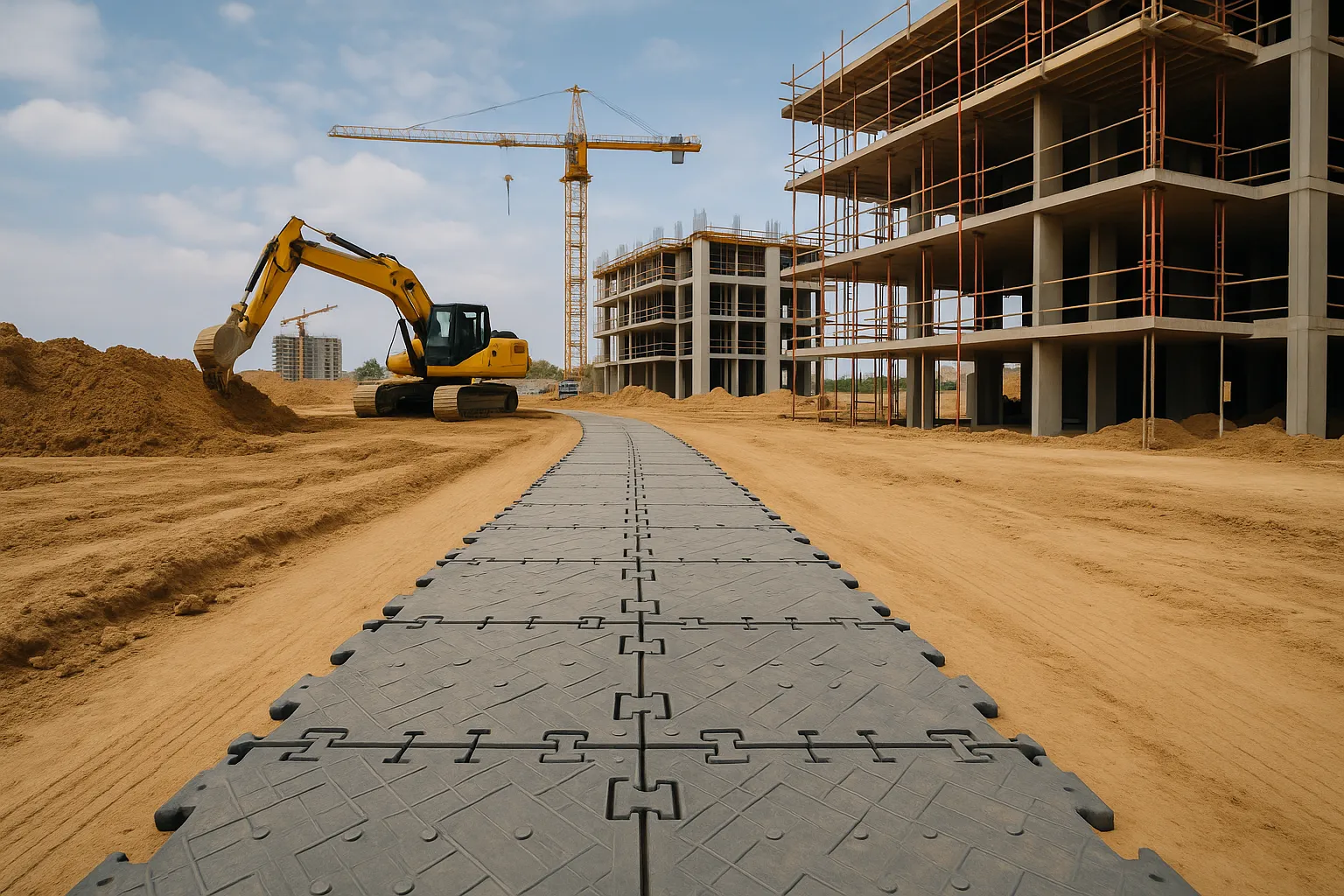

- Temporary access roads for trucks and equipment

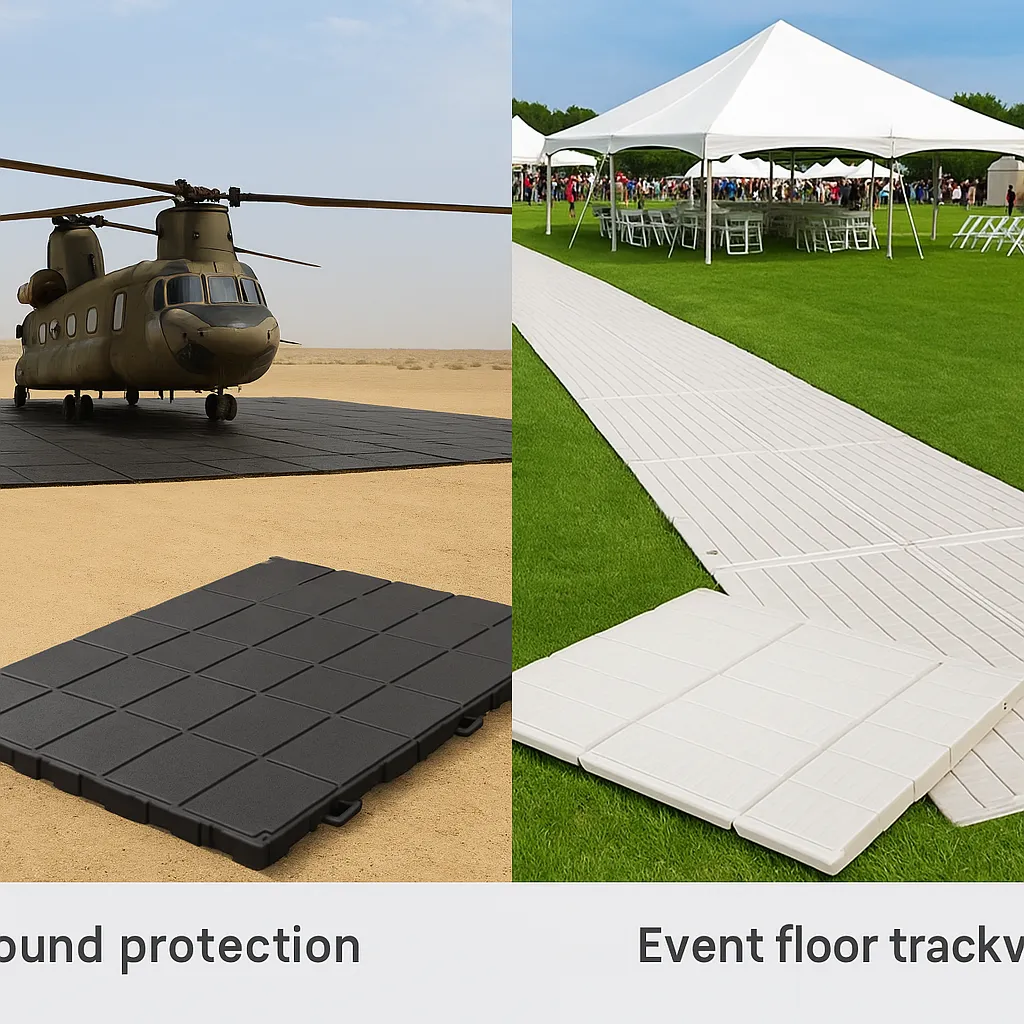

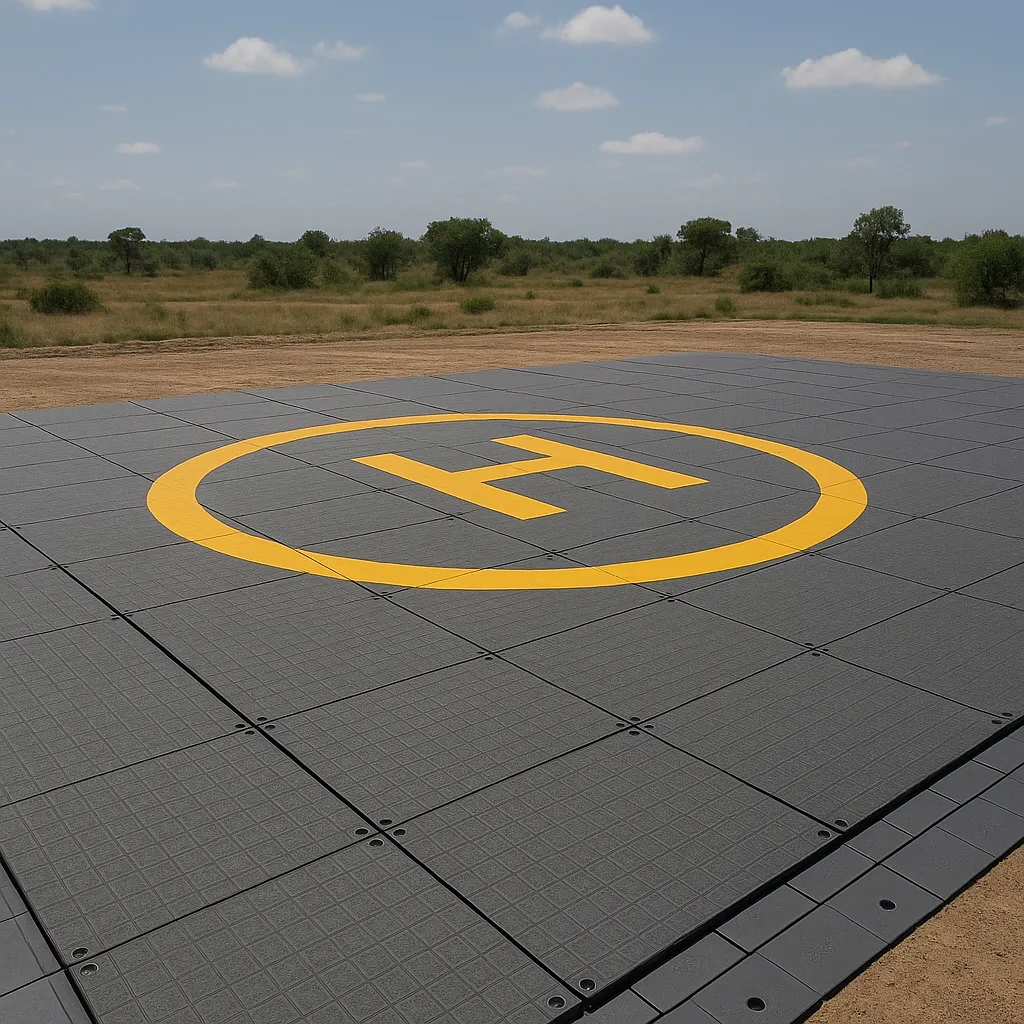

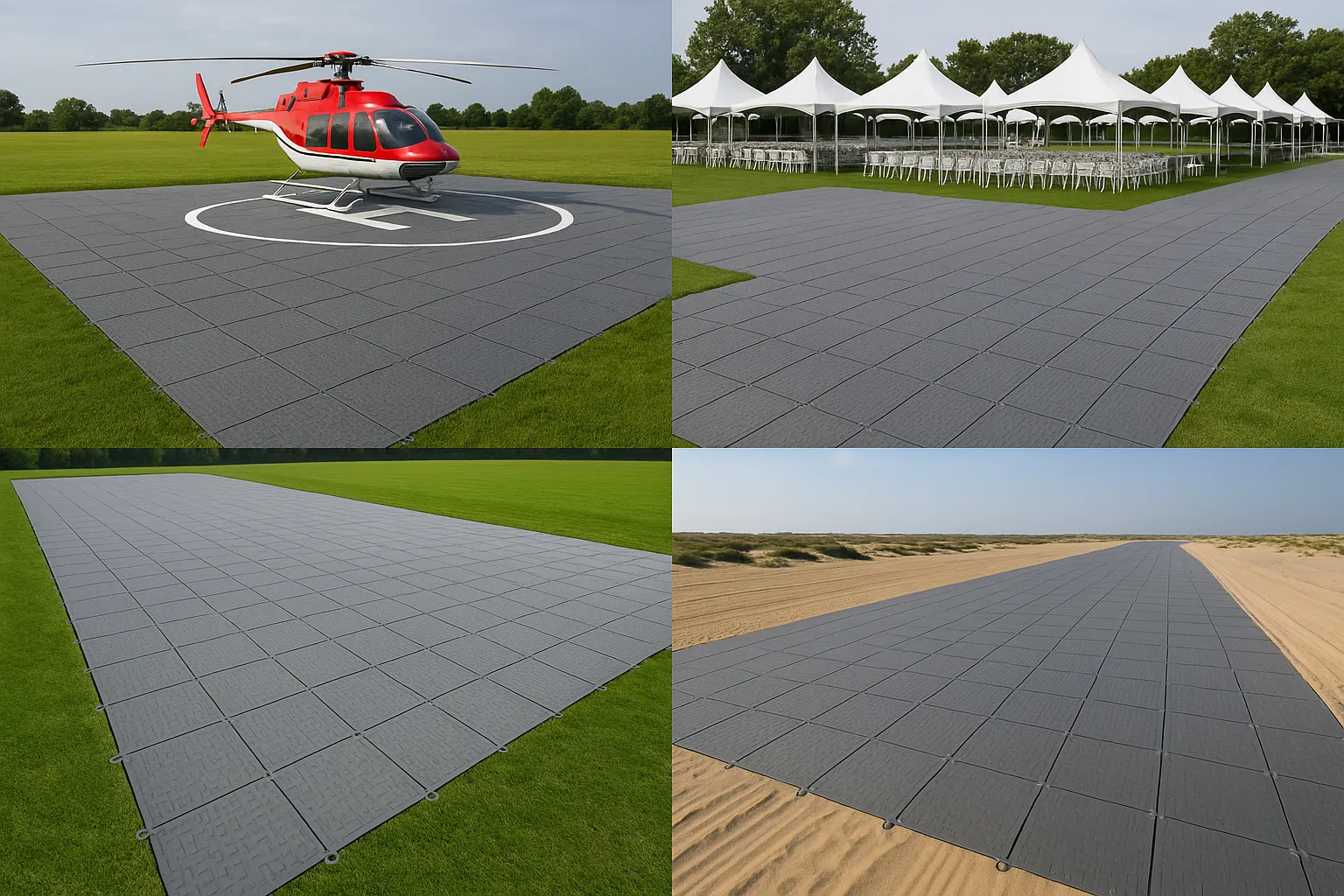

- Helipads and aviation support areas
- Logistics staging zones and warehouse overflow
- Military, emergency, and remote-site operations
- Maintenance and repair sites
- Heavy-vehicle parking on non-paved surfaces
HD Features & Advantages:
Heavy-Duty Construction –
Manufactured using a PP recycled+virgin blend enriched with UV and compatibilizer additives, ensuring long-term durability under high stress.
High Load Capacity –
Supports up to 30 tons per m², tested on hard ground and sand.
Safe, Anti-Slip Surface –
Designed to provide stability and traction in both dry and wet environments.
T-lock connectors in the Secure Interlock System –
guarantee a single, solid surface in harsh applications.
Accessories
That Work
- Black and yellow ramps
- Channels on cables
- Speed bumps
- M8 anchoring well nuts
| HD Technical Specifications | |
|---|---|
| Specification | Details |
| Tile Size | 500 × 500 mm (0.25 m²) |
| Thickness | 50 mm |
| Weight | 12.8 kg/m² (approx. 3.2 kg per tile) |
| Material | PP recycled + virgin blend |
| Load Capacity | 6.21 MPa / 900 psi / 30 tons/m² |
| Fire Rating | ASTM E84 (FSI 75, SDI 1000) |
| Pallet Coverage | 43 m² per pallet |
| 40 ft Truck | 946 m² |
| 40 ft Container | 860 m² |
Diode Trading EST LD – Light Duty Trackway System
Fast, Lightweight & Cost-Effective Ground Protection
Our LD trackway provides a safe, smooth, and pedestrian-friendly surface perfect for events, stadia, exhibitions, and light vehicle traffic on hard ground.
Ideal Applications

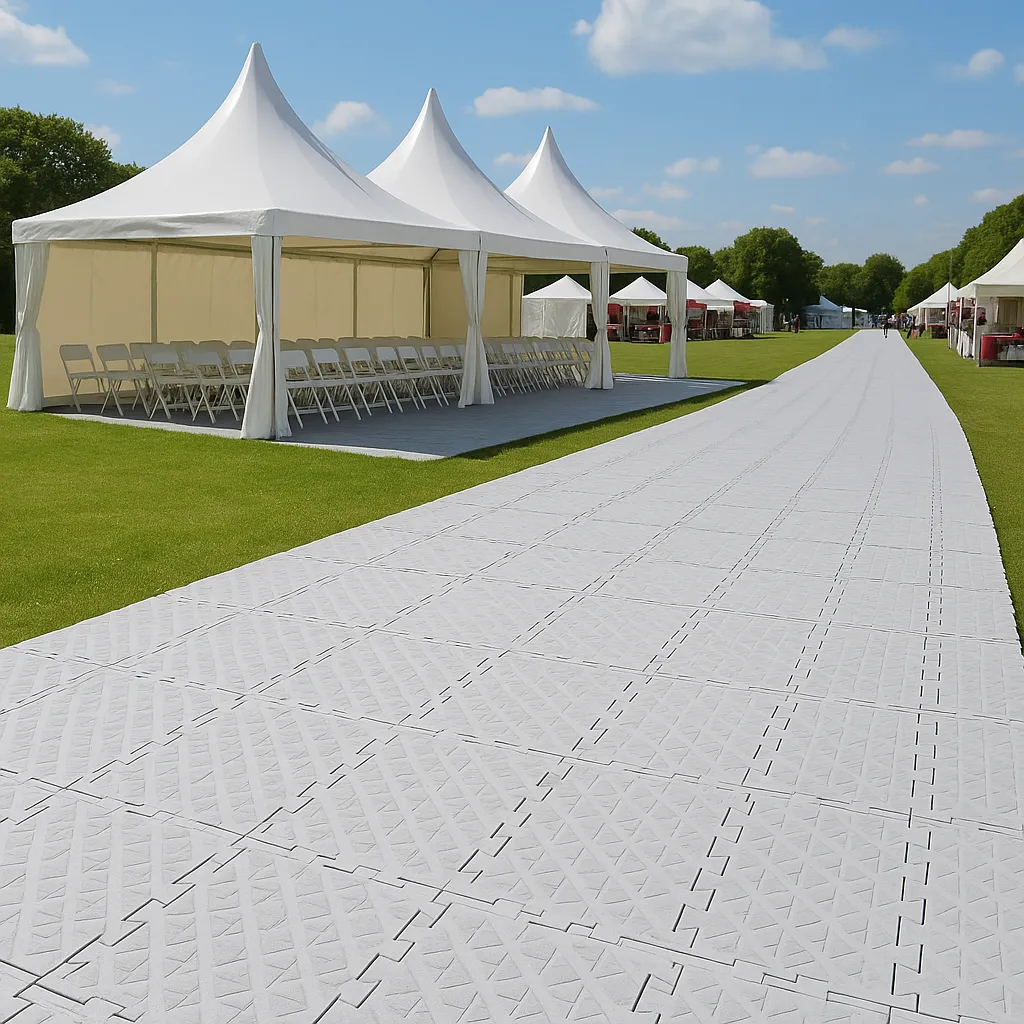

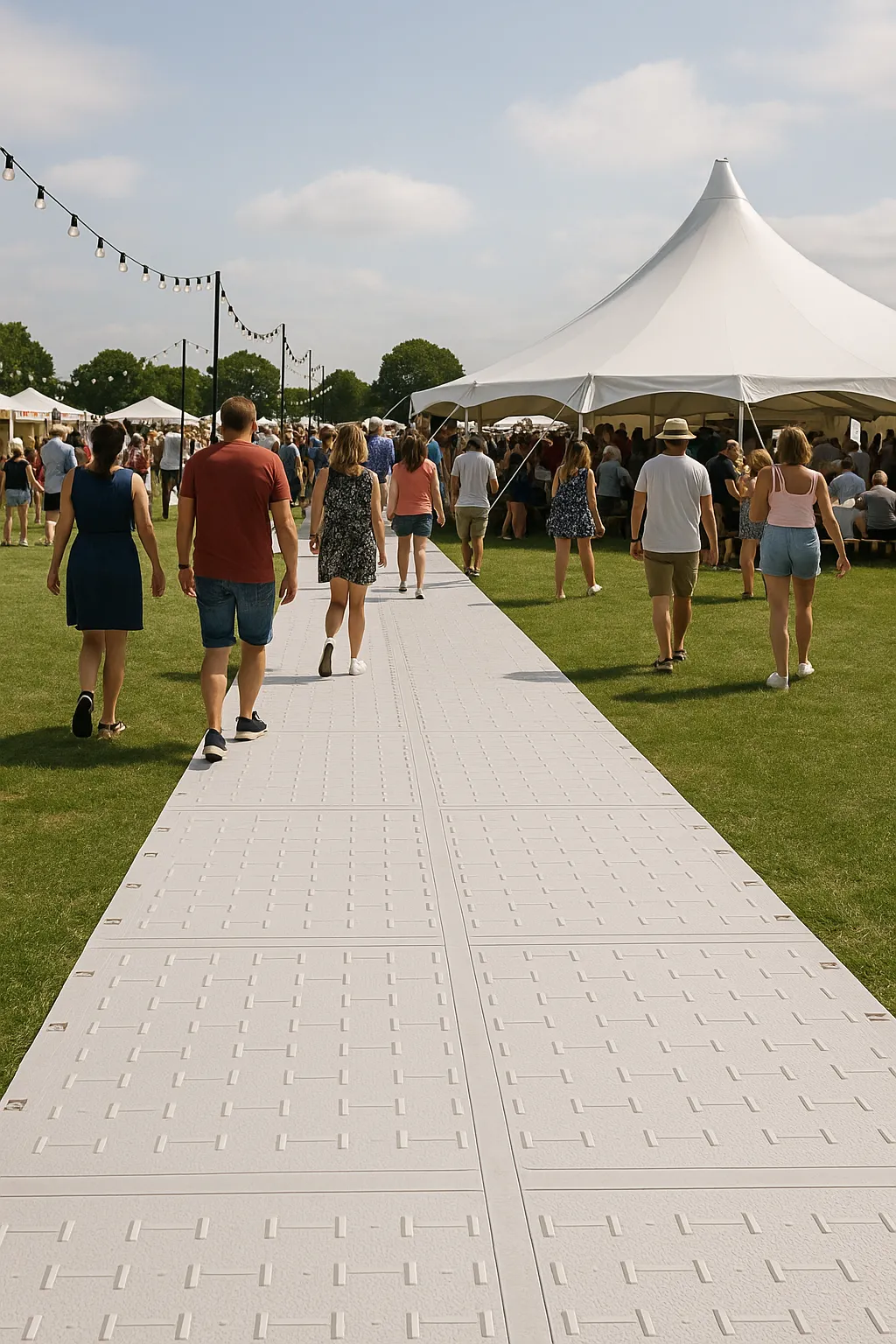

- Event walkways & festival footpaths
- Stadium and arena ground protection
- Tent flooring and temporary flooring
- Grass protection for public areas
- Workshops, BOH (back-of-house) & temporary storage
- Light vehicle and trolley movement
LD Features & Advantages
Ultra-Fast Deployment

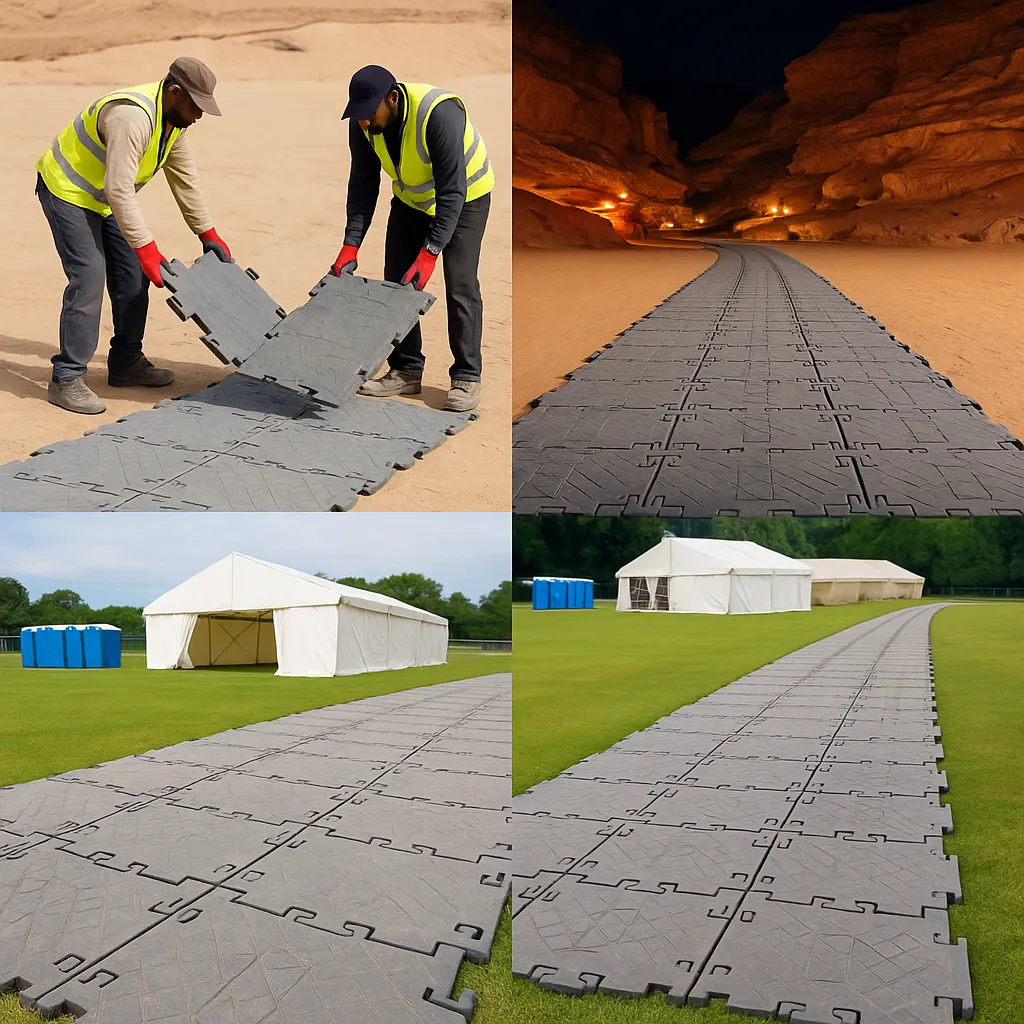

No-tools-required, clip-together design. Pre-connected sheets can be installed and removed quickly and easily.
Lightweight & Portable
With a weight of only 550 g per tile, LD panels can be transported and handled effortlessly.
LD panels are lightweight and manageable, weighing only 550 g per tile.
Eco-Friendly Style
protects the surface without suffocating the grass. Perfect for big outdoor gatherings.
Slip-Resistant Surface
Guarantees accessibility and safety in high-traffic areas.
| LD Technical Specifications | |
|---|---|
| Specification | Details |
| Tile Size | 600 × 150 × 23 mm |
| Weight | 550 g per tile |
| Sheet Size | 1.2 × 2.1 m (2.52 m²) |
| Surface Area per Tile | 0.09 m² |
| Material | Lightweight plastic with UV stabilisers |
| Point Load | 10 tons/m² |
| Fire Rating | ASTM E84-20 (FSI 75, SDI 1000) |
| Pallet Coverage | 113 m² (single), 226 m² (double) |
| 20 ft Container | 1130 m² |
| 40 ft Container | 2260 m² |
| HD vs. LD – Which System Do You Need? | ||
|---|---|---|
| Requirement | HD Tiles | LD Trackway |
| Heavy vehicles & machinery | ✓ | ✕ |
| Light vehicles on hard ground | ✓ | ✓ |
| Pedestrian walkways | ✓ | ✓ |
| Grass protection | ✕ | ✓ |
| Fastest installation speed | Moderate | Very fast |
| Industrial environments | ✓ | ✕ |
| Event & hospitality | ✓ | ✓ |
| Temporary access roads | ✓ | ✕ |
Sustainability Commitment
Diode Trading EST prioritises environmental responsibility through:
- Use of recycled materials
- Long product life cycles
- Fully recyclable components
- Reduction of single-use ground protection waste
- Regionally manufactured products (where applicable) to reduce transport emissions
Why Diode Trading EST?
We’ve built a good reputation for delivering top-notch ground protection systems for industrial sites, busy commercial spaces, and significant events. We ensure:
- Consistent quality
- Reliable supply
- Expert installation guidance
- Custom layout planning
- Fast regional delivery
Sustainability & Advantages
Our commitment to sustainability goes beyond using recycled materials. Diode Trading EST minimises carbon footprint by manufacturing products close to where they’re used. The HD and LD systems are fully recyclable and offer long service life, replacing one time wooden boards or asphalt. Custom colours and translucent options prolong grass life beneath trackway panels.
Contact & Quotation
For a custom design, quantity quote, or technical support, please reach Diode Trading EST through the regional offices and provide your project details – area, expected loads, and ground conditions – for us to suggest the appropriate combination of HD and LD systems and accessories.
